Industrial Cylinders
Showing all 7 results
-
Industrial CylindersHPPH – Bore Pin Hole Hydraulic Cylinders, Screwed Rod Cap
HPPH
The extremely durable HHPH series of hydraulic cylinders are designed for situations where short closed length cylinders are vital. Stroke lengths range from 4.00″ (101.6mm) up to 20.00″ (508mm) providing a range of options to suit your various needs.
Technical Specifications:
- Bore: 1.5″ or 2.0″
- Stroke: 0mm-4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
(0 reviews) -

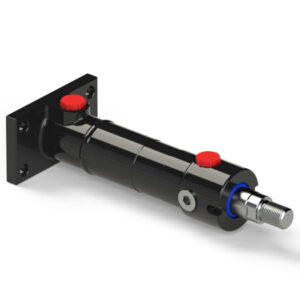

Industrial CylindersRFC – Bore Rectangular Flange Head Cap
RFC
Industrial StyleOur RFC range features a rectangular flange mount at the rear of the cylinder and is available in a range of bore sizes from 1.50” – 4.00”. This range is suitable for customers where only a rectangular rear flat plate is available to bolt the mount to.
Technical Specifications:
-
- Bore: 1.5″ – 4.0″ in 0.5″ increments
- Stroke: 0mm-4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
MANUFACTURED BY
(0 reviews) -
-
Industrial CylindersHPNM – Bore No Mount Hydraulic Cylinders, Screwed Rod Cap
HPNM – Industrial Style
Our HPNM range of screwed cap hydraulic cylinders feature no mount allowing customers to utilise their own mount to suit individual needs. These cylinders allow for superior flexibility while still providing high performance in a range of industrial environments.
Technical Specifications:
- Bore: 2.0″ – 3.0″ in 0.5″ increments
- Stroke: 0mm-4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
MANUFACTURED BY
(0 reviews) -

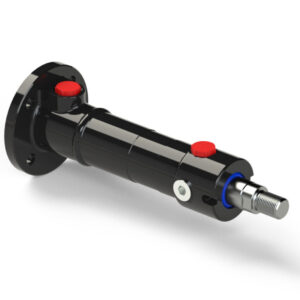

Industrial CylindersCFC – Bore Circular Flange Head Cap
CFC – Industrial Style
Our CFC range features a circular flange mount at the rear of the cylinder and is available in a range of bore sizes from 1.50”- 3.50”. This range is applicable for customers where only a circular rear flat plate is available to bolt the mount to.
Technical Specifications:
- Bore: 1.5″ – 4.0″ in 0.5″ increments
- Stroke: 0mm-4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
MANUFACTURED BY
(0 reviews) -
Industrial CylindersCFH – Bore Circular Flange Rod Cap
CFH – Industrial Style
Our CFH range features a circular flange mount at the front of the cylinder and is available in a range of bore sizes from 1.50” – 4.00”. This range should be utilised when a rectangular front mounting plate is available and the shortest possible column length is required.
Technical Specifications:
- Bore: 1.5″-4.0″ in 0.5″ increments
- Stroke: 0mm-4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
MANUFACTURED BY
(0 reviews) -
Industrial CylindersH No – Bore Circular Flange Rod Cap
H No – Industrial Style
Our H No series range features a circular flange mount at the front of the cylinder and is available in both 2.50” and 3.00” bore sizes. These cylinders are used when the shortest possible column length is required and a front mounting plate is present.
The H No series offers superior push and pull characteristics providing that the piston rod is aligned with the workload center-line.Technical Specifications:
- Bore: 2.5″or 3.0″
- Stroke: 0mm – 4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
MANUFACTURED BY
(0 reviews) -

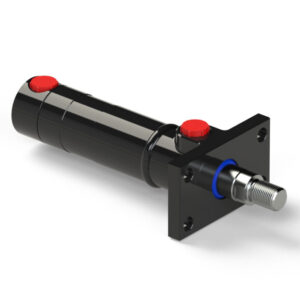

Industrial CylindersRFH – Bore Rectangular Flange Rod Cap
RFH – Industrial Style
Our RFH range features a rectangular flange mount at the front of the cylinder and is available in a range of bore sizes from 1.50” – 4.00”. This range should be utilised when a rectangular front mounting plate is available and the shortest possible column length is required.
Technical Specifications:
- Bore: 1.5″ – 4.0″ in 0.5″ increments
- Stroke: 0mm – 4500mm
- Working Pressure: 210 bar
- Maximum Pressure: 300 bar
- Max Flow Rate: 20L/min
MANUFACTURED BY
(0 reviews)
