Description

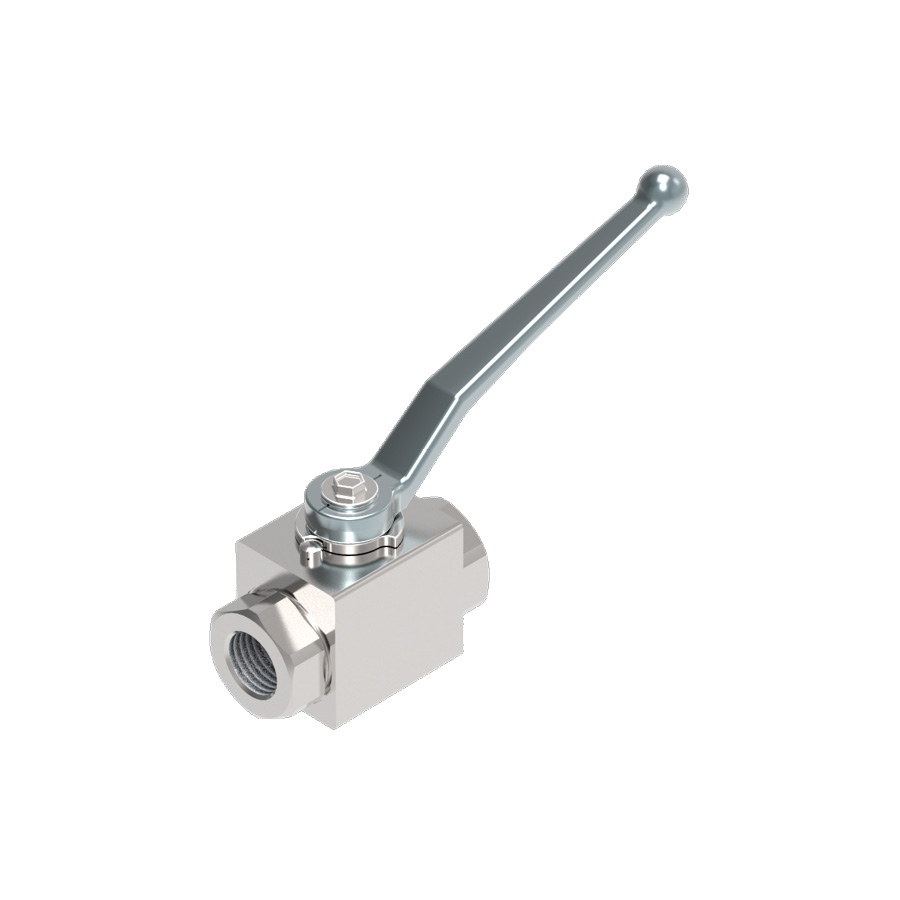

BKH – Block-type Ball Valve
Block-type ball valves for different fields of application like construction machinery, agricultural machinery, mobile hydraulics ,mining industry, gas-industry. Available in DN 4 to 25 with different connectors.
Adapter: BSP thread, NPT thread, compression fitting light and heavy series, UNC/UNF female thread, bulkhead connection, welding end and welding taper, plug-in socket and plug nipple.
Dimensions: DN04 to DN25
Body: S460N, S355
Ball + stem: free cutting steel, stainless steel (1.4571/316Ti)
Sealing: plastics, metal
Pressure range: up to PN500 (note table of dimensions)
Field of application: hydraulics, particularly in construction industry and agricultural machinery, mining industry and gas industry (Material of seals and body adapted to application!)
Temperature range: standard: -20°C to +80°C (-4 to +176°F)
Surface: black oxide finishing, zinc-layer, zinc nickel
