Description

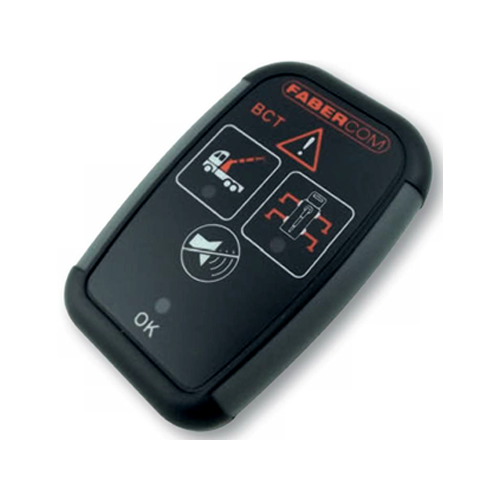

BCT is an electronic device for visible and acoustic alarm warnings.

Recommended for all the trucks and vehicles equipped with stabilizing outriggers and boom.
Fit BCT in the cabin of the vehicle and nearby the driver position.
BCT advises the driver anytime the outriggers are not fully retracted and the boom height exceed the maximum allowed.
The audible alarm can be turn off by the silent push button or by an electrical signal from the vehicle’s parking brake.

Manufactured By

In Stock

Add to Product Enquiry

SPECIFICATIONS
DOWNLOADS

Description

Features

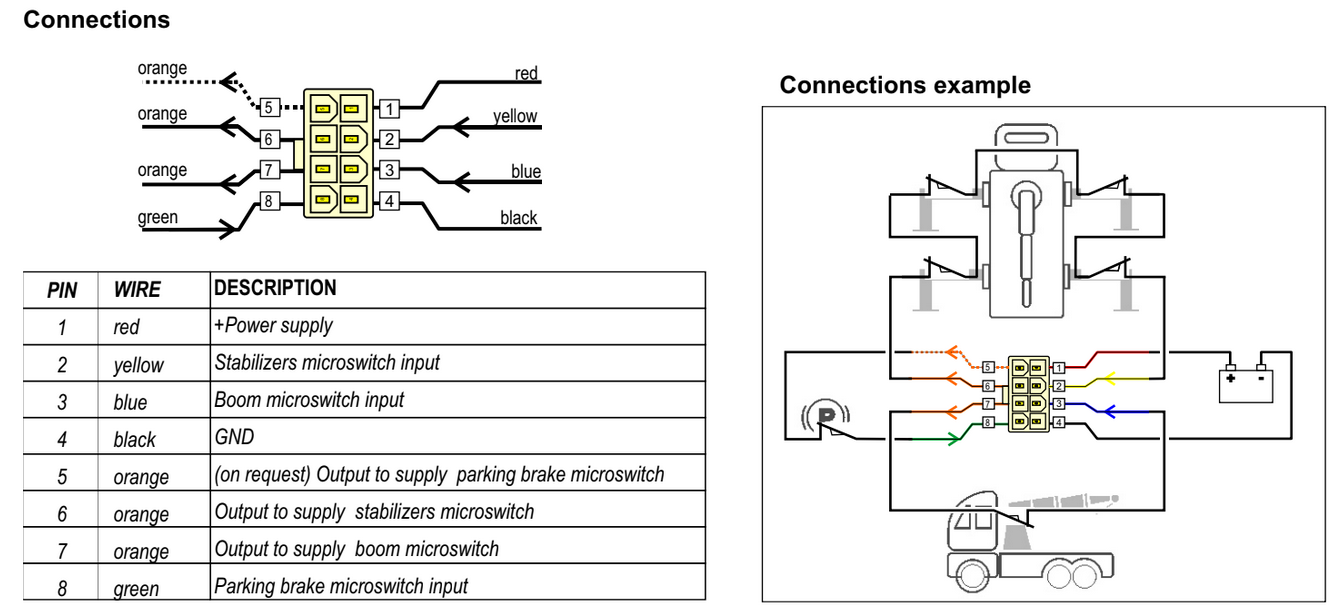

The BCT device is equipped by:

1 digital input to acquire the stabilizers status
1 digital input to acquire the boom status
1 digital input to silence the audible warning
3 positives suitable to supply the digital inputs and to facilitate the cabling.
button to disable the acoustic alarm
2 red LEDs to signal the warning condition
1 green LED
Digital inputs and power supply are over voltage and short-circuit protection.

Technical Specifications

Power supply	10Vdc ÷ 30Vdc
Working temperature range	-20 ÷ +70 °C
Current absorption	max 28mA
Seal integrity	IP53
Overall dimensions	50mm x 75mm x 17mm
