FPM Barrel Type Needle Valves

FPM Barrel Type Needle Valves

Description

  • In-Line Adjustable Needle Valves – Barrel Type
  • In-Line Adjustable Needle Valve c/w Reverse Free Flow Check Valve – Barrel Type

Manufactured By

In Stock
Add to Product Enquiry

Description

In-Line Adjustable Needle Valves – Barrel Type

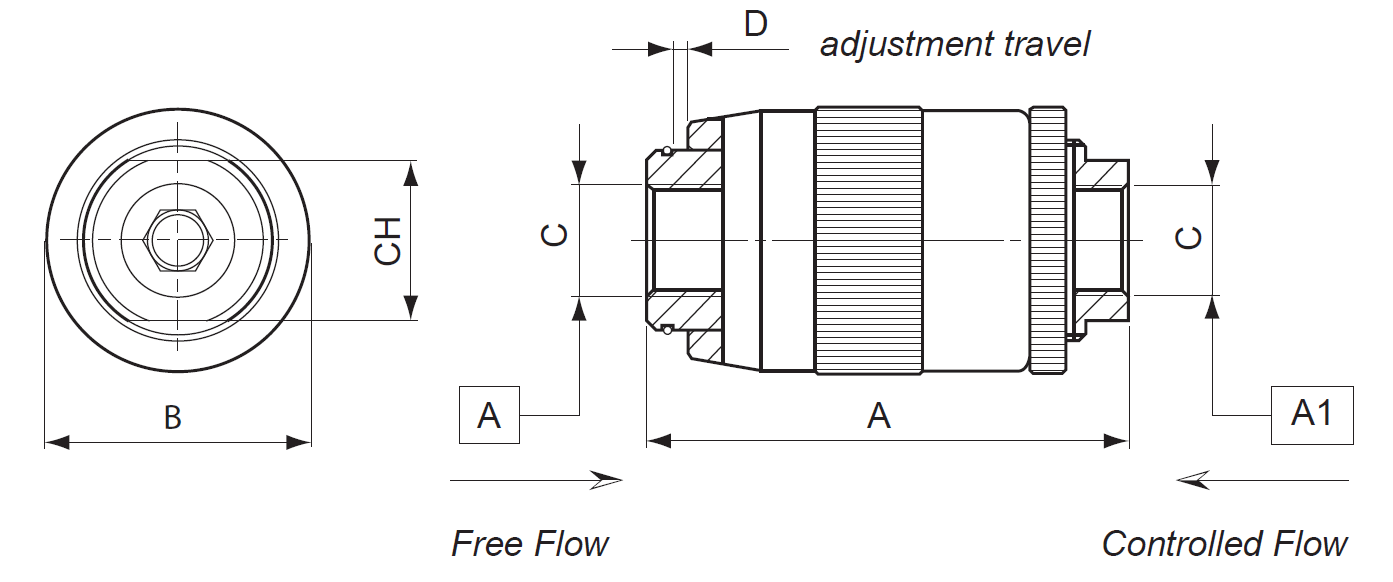

Stock No. Description Max. Flow Rate Max. Working Pressure A B C D CH Weight
mm mm BSPP mm mm Kg
FPMB14 Adjustable Needle Valve 12 LPM 350 BAR 62 34 1/4” 4.5 19 0.275
FPMB38 Adjustable Needle Valve 30 LPM 350 BAR 72 40 3/8” 5.5 24 0.43
FPMB12 Adjustable Needle Valve 45 LPM 310 BAR 80 46 1/2” 7 30 0.63
FPMB34 Adjustable Needle Valve 85 LPM 280 BAR 100 54 3/4” 10 36 1.05
FPMB1 Adjustable Needle Valve 150 LPM 250 BAR 125 65 1” 12 41 1.96



In-Line Adjustable Needle Valve c/w Reverse Free Flow Check Valve – Barrel Type

Stock No. Description Max. Flow Rate Max. Working Pressure A B C D CH Weight
mm mm BSPP mm mm Kg
FPMU14 Adjustable Needle Valve c/w Reverse Flow Check 12 LPM 350 BAR 62 34 1/4” 4.5 19 0.275
FPMU38 Adjustable Needle Valve c/w Reverse Flow Check 30 LPM 350 BAR 72 40 3/8” 5.5 24 0.43
FPMU12 Adjustable Needle Valve c/w Reverse Flow Check 45 LPM 310 BAR 80 46 1/2” 7 30 0.63
FPMU34 Adjustable Needle Valve c/w Reverse Flow Check 85 LPM 280 BAR 100 54 3/4” 10 36 1.05
FPMU1 Adjustable Needle Valve c/w Reverse Flow Check 150 LPM 250 BAR 125 65 1” 12 41 1.96
FPMU114 Adjustable Needle Valve c/w Reverse Flow Check 210 LPM 230 BAR 135 80 1-1/4” – 55 3.5
FPMU112 Adjustable Needle Valve c/w Reverse Flow Check 280 LPM 230 BAR 150 90 1-1/2” – 62 5
