Description

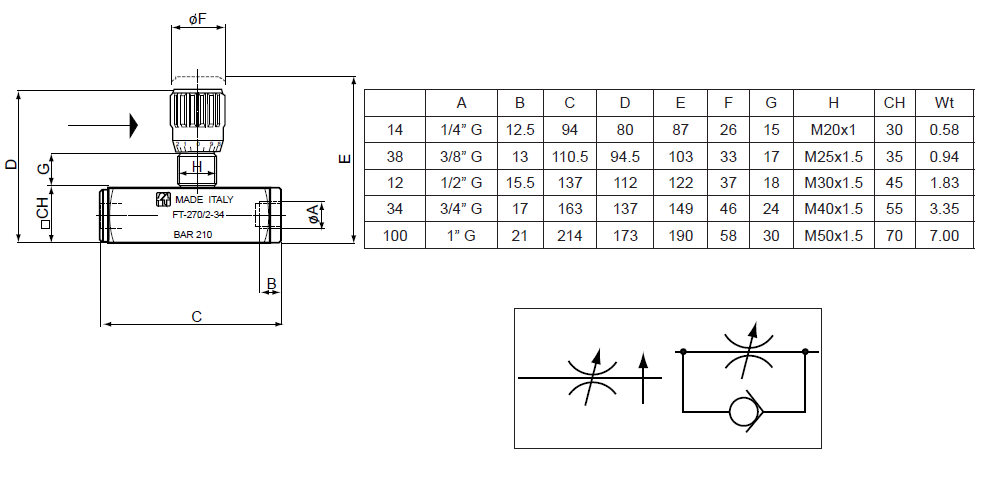

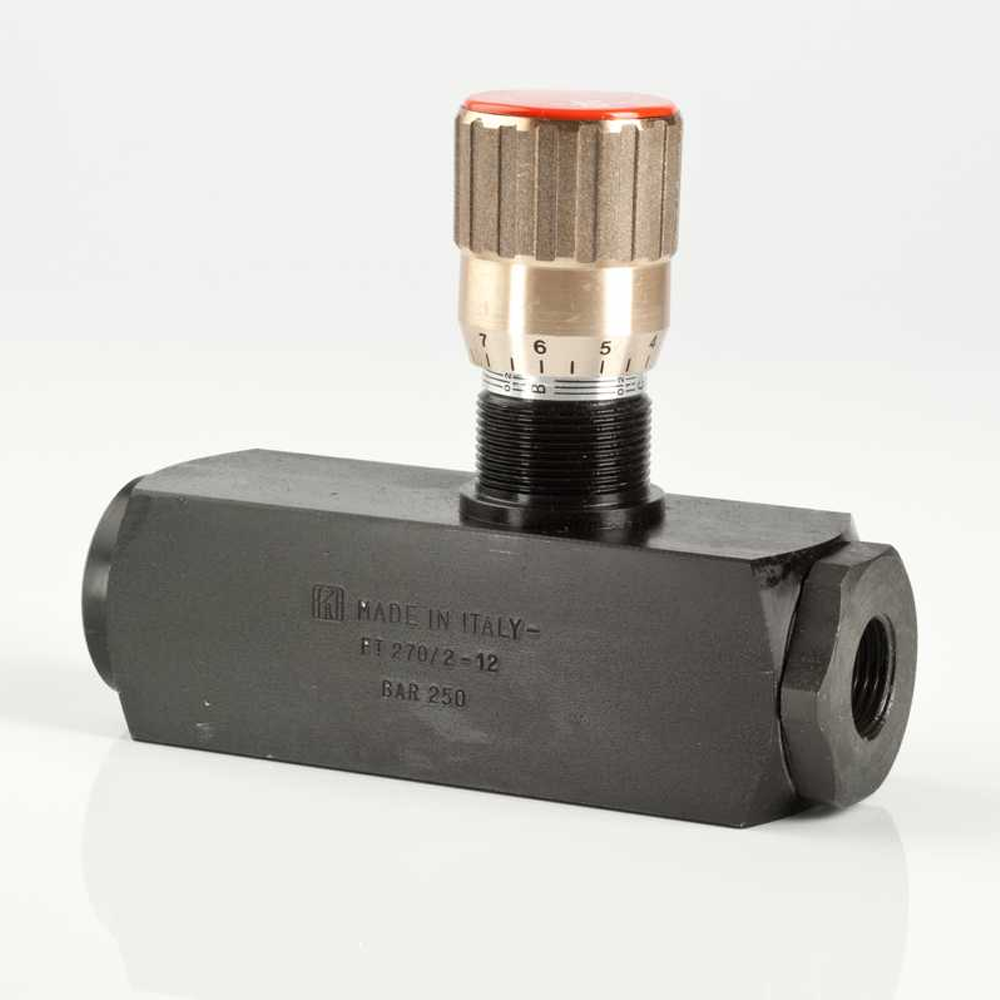

Pressure Compensated In-Line Adjustable Needle Valves
| Stock No. | Description | Port Size BSPP | Max. Flow Rate | Max. Working Pressure | Min. Working ΔP |
| FT270214 | Pressure Compensated Adj. Needle Valve | 1/4” | 12.5 LPM | 210 BAR | 5 BAR |
| FT270238 | Pressure Compensated Adj. Needle Valve | 3/8” | 25 LPM | 210 BAR | 7 BAR |
| FT270212 | Pressure Compensated Adj. Needle Valve | 1/2” | 50 LPM | 210 BAR | 10 BAR |
| FT270234 | Pressure Compensated Adj. Needle Valve | 3/4” | 80 LPM | 210 BAR | 10 BAR |
| FT2702100 | Pressure Compensated Adj. Needle Valve | 1” | 135 LPM | 210 BAR | 16 BAR |

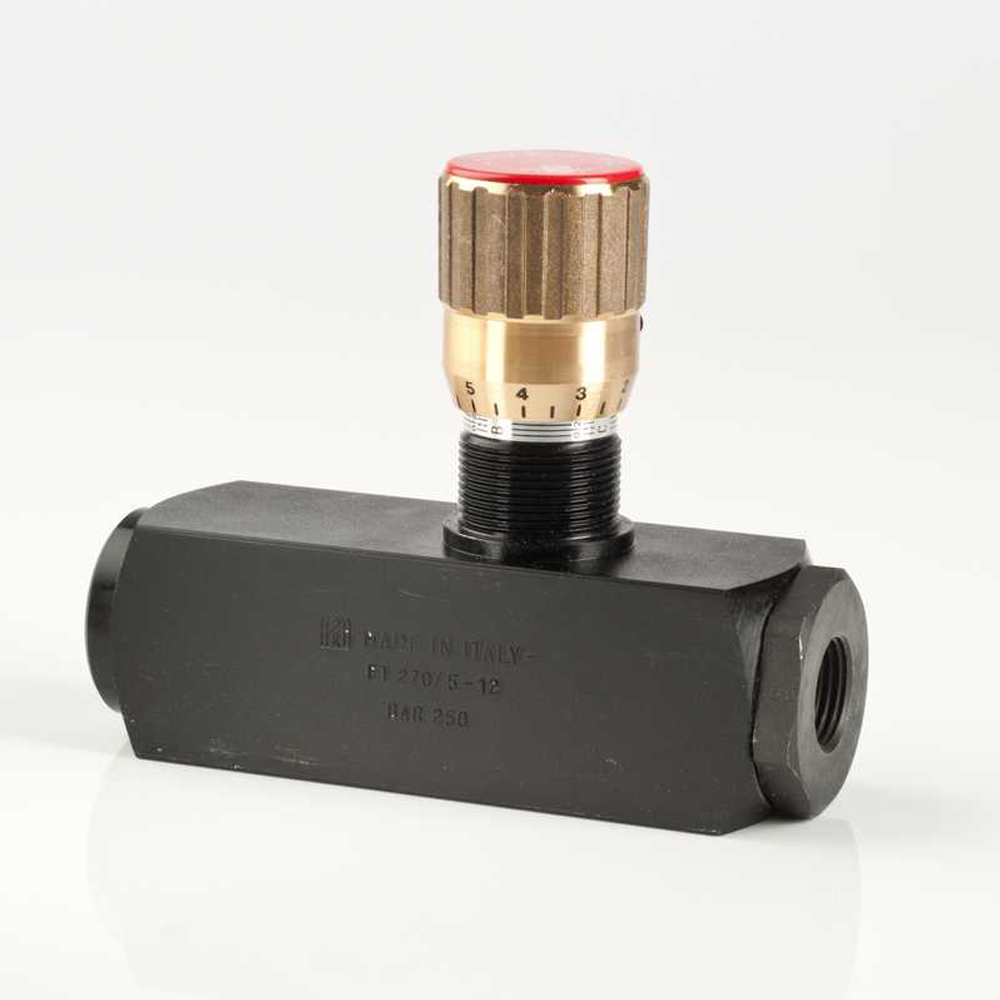

Pressure Compensated In-line Adjustable Needle Valves c/w Free Flow Check Valve
| Stock No. | Description | Port Size BSPP | Max. Flow Rate | Max. Working Pressure | Min. Burst Pressure |
| FT270514 | P.C.Adj. Needle Valve c/w Free Flow Check | 1/4” | 12.5 LPM | 210 BAR | 5 BAR |
| FT270538 | P.C.Adj. Needle Valve c/w Free Flow Check | 3/8” | 25 LPM | 210 BAR | 7 BAR |
| FT270512 | P.C.Adj. Needle Valve c/w Free Flow Check | 1/2” | 50 LPM | 210 BAR | 10 BAR |
| FT270534 | P.C.Adj. Needle Valve c/w Free Flow Check | 3/4” | 80 LPM | 210 BAR | 10 BAR |
| FT2705100 | P.C.Adj. Needle Valve c/w Free Flow Check | 1” | 135 LPM | 210 BAR | 16 BAR |
Panel Mount Kits
| Stock No. | Description | To Suit | |
| Size | Model | ||
| FT2023 | Gold Series Panel Mount Kit | 1/8” | FT257 |
| FT2024 | Gold Series Panel Mount Kit | 1/4” | FT257 / FT270 |
| FT2025 | Gold Series Panel Mount Kit | 3/8” | FT257 / FT270 |
| FT2026 | Gold Series Panel Mount Kit | 1/2” | FT257 / FT270 |
| FT2028 | Gold Series Panel Mount Kit | 3/4” | FT257 / FT270 |
| FT20210 | Gold Series Panel Mount Kit | 1” & 1-1/4” | FT257 / FT270 |
