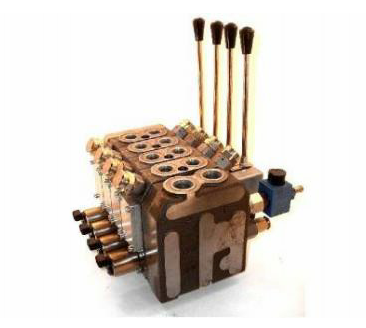

HC-MV99 is the new Load Sensing control valve with electro-proportional actuation from di Hydrocontrol S.p.A. This control valve guarantees the best result in terms of control and movement precision for all applications and has been specially studied for hoisting machines. Numerous integrated valve features in addition to countless configuration options make HC-MV99 highly flexible and easily adaptable to the widest applications range.
| Series | HCMV99 |
| Brand | HYDROCONTROL |
| MAX FLOW LPM | 130 |
| NOTES | PRESSURE COMPENSATED |
| MAX PUMP FLOW l/min | 130 |
| MAX FLOW ON SERVICE PORTS l/min | 90 |
| MAX WORKING PRESSURE bar | 420 |
| CONSTRUCTION | LOAD SENSING PRE COMPENSATED |
| CIRCUIT | FIXED AND VARIABLE DISPLACEMENT PUMP |
| NUMBER OF SECTIONS | 8 |
| SPOOL ACTUATION | MANUAL, HYDRAULIC PILOT, ELECTRO PROPORTIONAL & ON-OFF |
| SERIES | HCMV99 |
| SECTIONAL STYLE | YES |
| PROPORTIONAL | YES |
| PRESSURE COMPENSATED | YES |
| SERVICE PORT RELIEF | YES |
Working modules with pressure compensator built-in.
