The JHM joystick controller has been designed for use in mobile and industrial field applications.
The use of the hall effect sensor, which eliminates any contact between moving electrical parts, improves overall resolution, precision and life. A complete line of built-in electronic drivers, generating on-off, proportional and CANbus control signals, guarantees the highest controllability of any type of electrohydraulic system
| Main body material: | Aluminium |
| Boot Material | EPDM – UV proof |
| Lever deflection angle | ±22° ±1° |
| Electrical angle | ±22° ±1° |
| Operating temperature range | -25°C / +80°C |
| Protection class (above panel) | up to IP 67, depending on grip |
| Life | > 5 million cycles |
|
Technical DataClick here to view Technical Data |

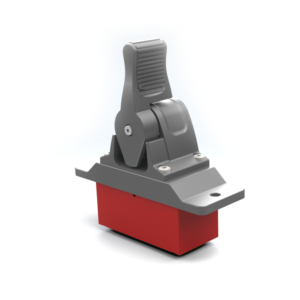

MAP2L is a single axis electronic joystick with PWM outputs, able to directly drive a couple of PWM solenoid valves. Joystick command is based on the measurement of magnetic field of a
permanent magnet through redundant Hall effect probes, not subject to wear and tear.
The JMF potentiometeric joystick controller has been designed for use in mobile and industrial field application. The potentiometer in use, available with 3 or 4-pins configuration, grants precision and a long working life. When coupled with an M range of ergonomic multi-function handles, up to 5 proportional axes and 9 on-off push buttons can be integrated in the same joystick. Power directional switches are available.

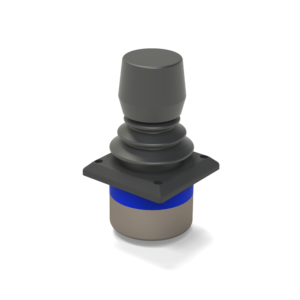

• Mini proportional thumb joystick with ergonomic design for panel
mounting.
• High performance hall effect sensor circuitry.
• Suitable for grips, controls panels, armrests or belly boxes.
• Analog voltage outputs, factory pre-set.
• One/two axis gated or 360°.
• 1 million cycle mechanical life.
