Description
Mechanical Specifications
| Lever deflection angle | ±22° ±1° |
| Electrical Angle | ±22° ±1° |
| Operating Temperature Range | -25°C / +80°C |
| Protection class (above panel) | Up to IP 67, Depending on Grip |
| Life | 3 Million Cycles |
JMF

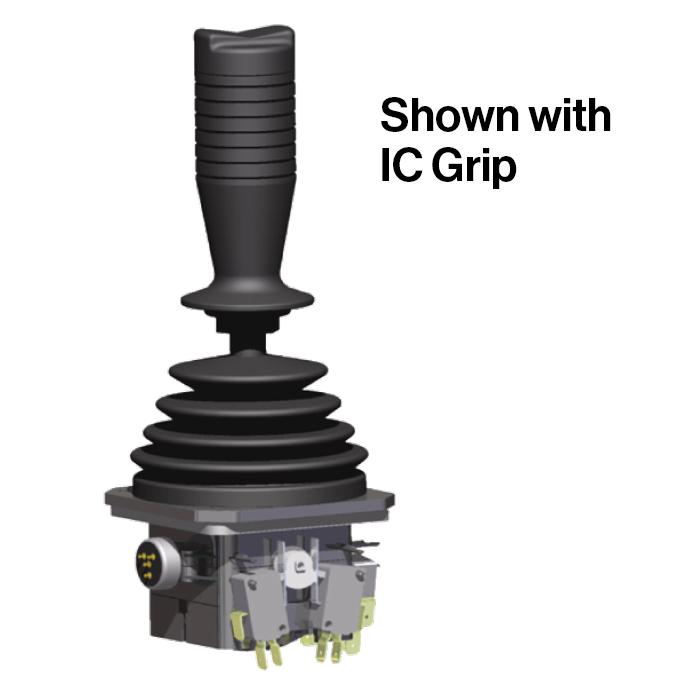

Heavy Duty Multi Axis Potentiometric Joystick Base
Features
The JMF potentiometeric joystick controller has been designed for use in mobile and industrial field application. The potentiometer in use, available with 3 or 4-pins configuration, grants precision and a long working life. When coupled with an M range of ergonomic multi-function handles, up to 5 proportional axes and 9 on-off push buttons can be integrated in the same joystick. Power directional switches are available.
Manufactured By
|
Technical DataClick here to view Technical Data |
