NVD2 is a highly innovative (Directional Control Valve), which paves the way into the world of proportional valves.NVD2 technology (patented) impressively joins constructive simplicity and high functional performance, a simple compact design, typical of the more traditional open-center directional control valves.

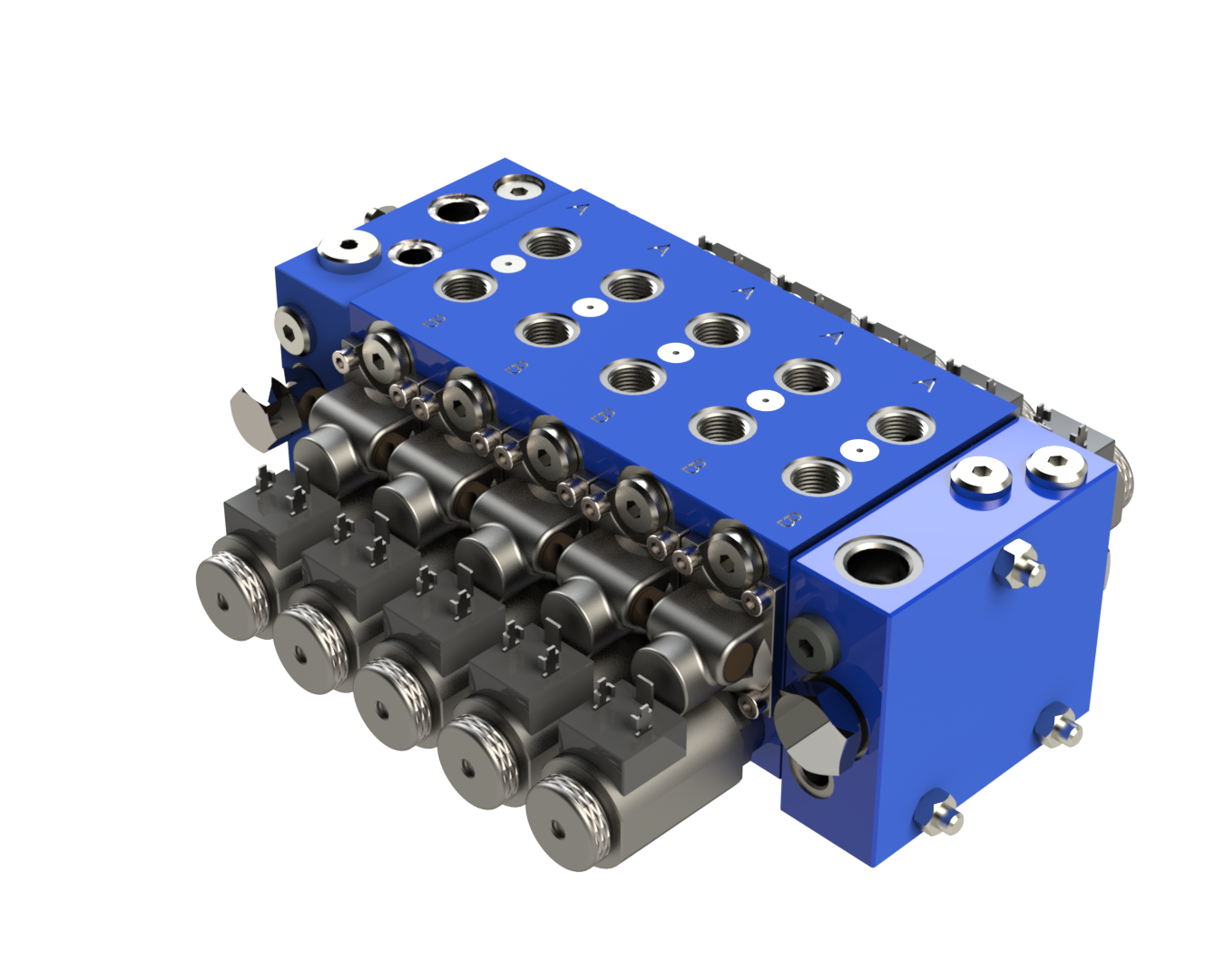

| Series | NVD2LS |
| Brand | NEM |
| MAX FLOW LPM | 40 |
| NOTES | LOAD SENSING PROPORTIONAL |
| MAX PUMP FLOW l/min | 40 |
| MAX FLOW ON SERVICE PORTS l/min | 36 |
| MAX WORKING PRESSURE bar | 350 |
| CONSTRUCTION | LOAD & FLOW SENSING |
| CIRCUIT | VARIABLE DISPLACEMENT PUMP |
| NUMBER OF SECTIONS | 8 |
| SPOOL ACTUATION | MANUAL, ELECTRO PROPORTIONAL |
| SERIES | NVD2LS |
| SECTIONAL STYLE | YES |
| PROPORTIONAL | YES |
| PRESSURE COMPENSATED | YES |
| SERVICE PORT RELIEF | YES |
NVD2 technology (patented) impressively joins constructive simplicity and high functional performance, a simple compact design, typical of the more traditional open-center directional control valves.
