Description
Direct Acting Poppet Type
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |

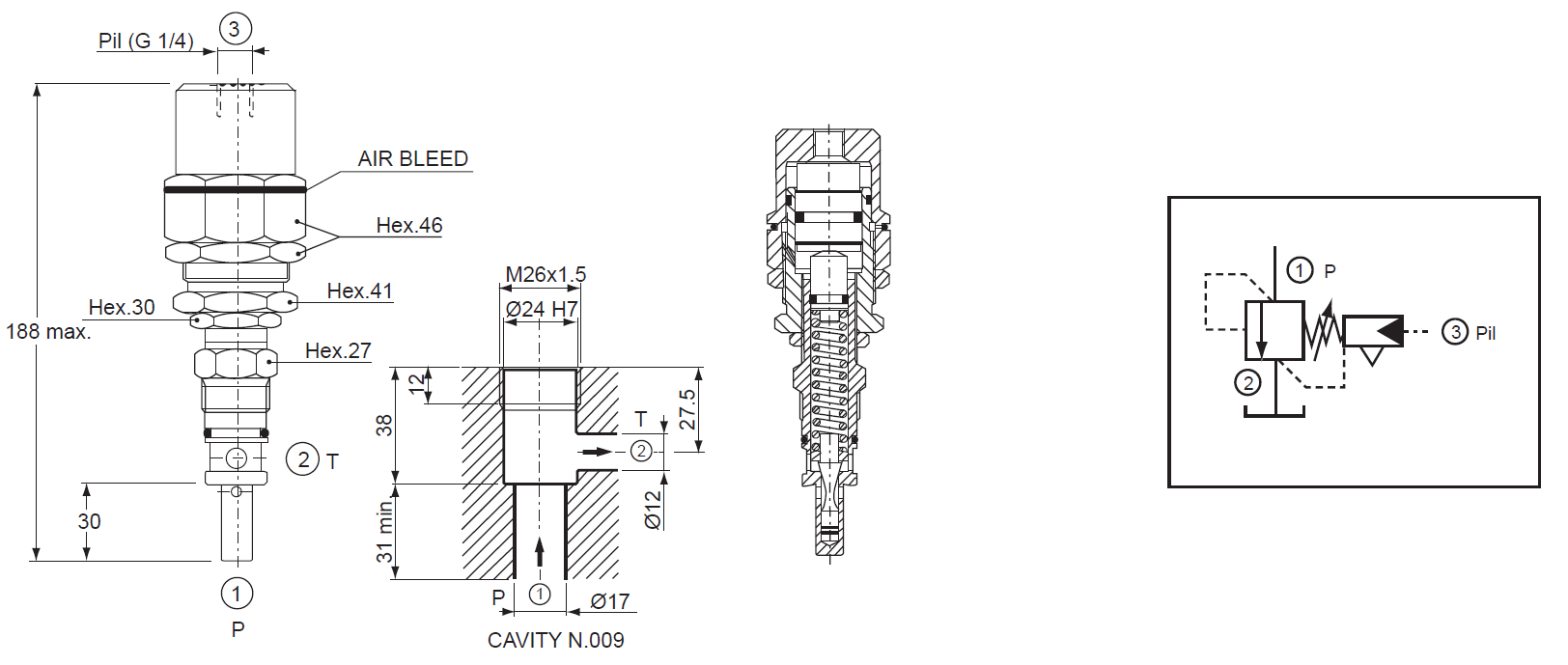

| 04.11.05.03.99.** | VS-80 | 80 LPM | 250 BAR | Cartridge |
| Technical Data | |
| Installation torque | 83-92 Nm |
| Max. working pressure | 250 bar |
| Flow max. | 80 l/min |
| Weight | 0.35 kg |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |
| 04.11.18.03.99.** | VS-30 | 30 LPM | 350 BAR | Cartridge |
| Technical Data | ||
| Installation torque | 46-51 Nm | |
| Max. working pressure | 350 bar | |
| Flow max. | 30 l/min | |
| Weight | 0.17 kg | |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |
| 04.11.22.03.99.** | VS-10 | 3 LPM | 350 BAR | Cartridge |
| Technical Data | ||
| Installation torque | 50-59 Nm | |
| Max. working pressure | 350 bar | |
| Flow max. | 20 l/min | |
| Weight | 0.17 kg | |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |
| 04.11.33.03.99.** | VS-80-2S | 80 LPM | 300 BAR | Cartridge |
| Technical Data | |
| Installation torque | 83-92 Nm |
| Max. working pressure | 300 bar |
| Max. pressure in “Pil’ | 30 bar |
| Flow max. | 80 l/min |
| Weight | 1.16 kg |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |
| 04.11.34.52.99.35 | VS-42 | 200 LPM | 350 BAR | Cartridge |
| Technical Data | ||
| With holes for wire locking | ||
| Installation torque | 246-272 Nm | |
| Max. working pressure | 350 bar | |
| Flow max. | 200 l/min | |
| Weight | 1 kg | |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |

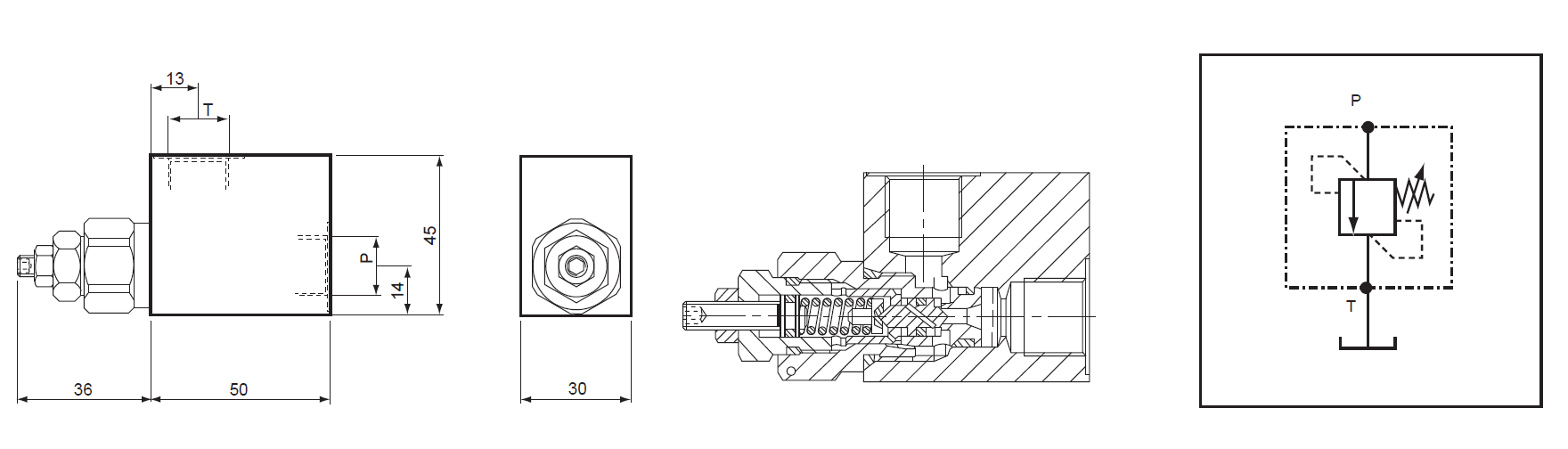

| 05.13.07.03.02.** | VSC-20 | 20 LPM | 350 BAR | 3/8” |
| Technical Data | ||
| Max. working pressure | 350 bar | |
| Flow max. | 20 l/min | |
| Weight | 0.425 kg | |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |

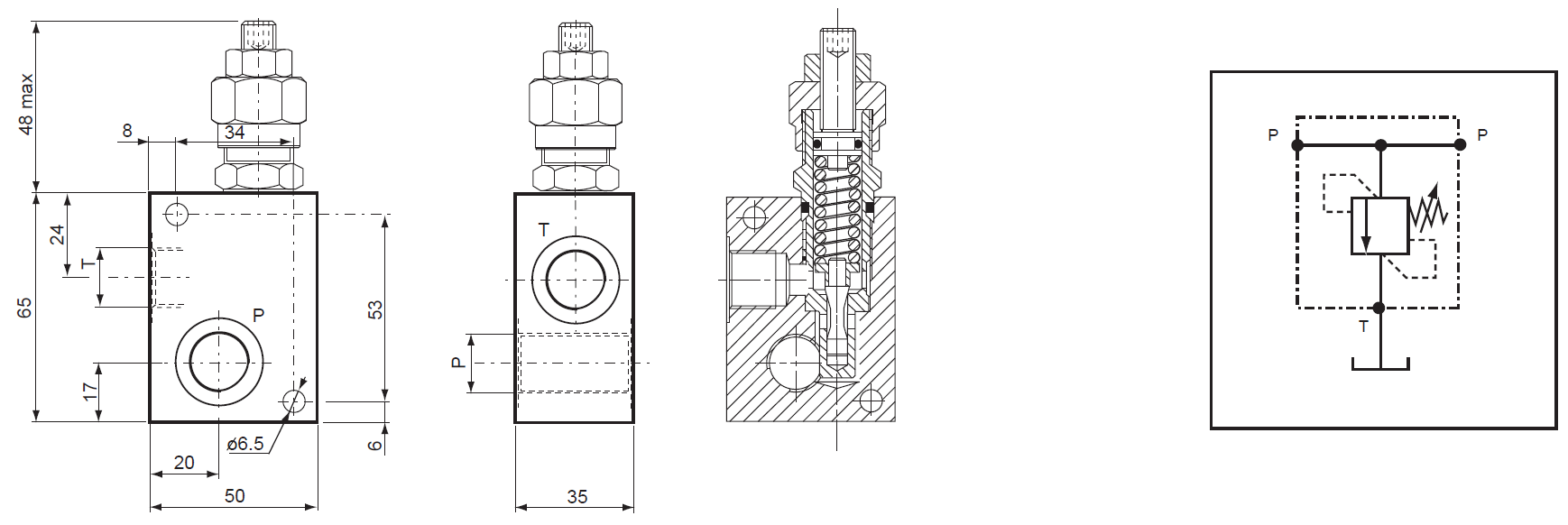

| 05.13.01.03.03.** | VSC-30 | 30 LPM | 350 BAR | 1/2” |
| 05.13.03.03.02.** | 3/8” | |||
| 05.13.01.03.09.** | 1/4” |
| Technical Data | |
| Max. working pressure | 350 bar |
| Flow max. | 30 l/min |
| Weight | 0.47 kg |
| Stock No. | Description | Max. Flow | Max. Pressure | Port Size |
| 05.13.02.03.03.** | VSC-80 | 80 LPM | 250 BAR | 1/2” |
| 05.13.02.03.04.** | 3/4” |
| Technical Data | |
| Max. working pressure | 250 bar |
| Flow max. | 80 l/min |
| Weight | 0.75 kg |
