Description

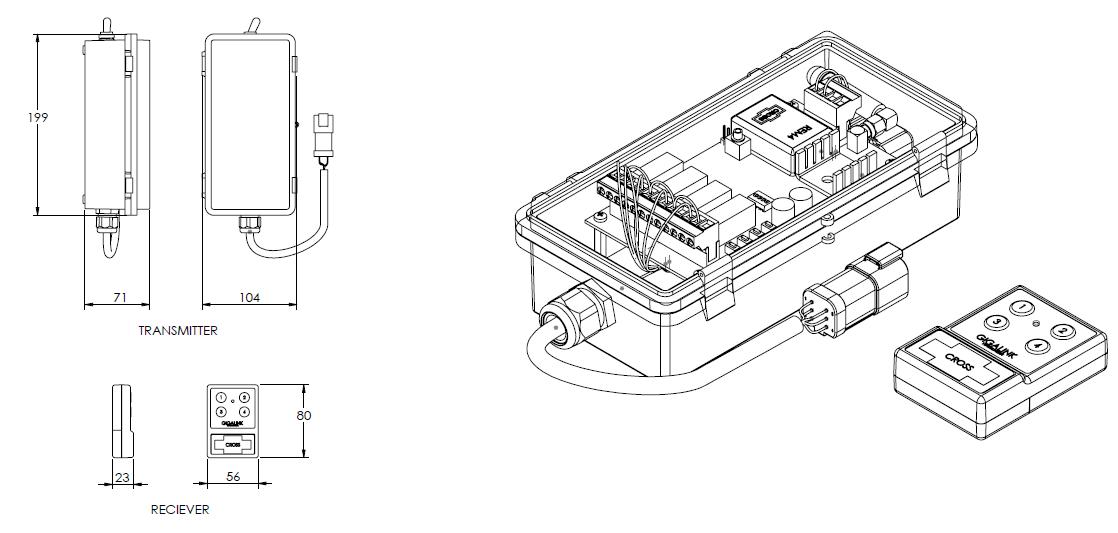

REM4B
| TRANSMITTER | RECIEVER | |
| MODEL | GLT43304 | REM4B |
| SWITCH | TACTILE DOME MEMBRANE | OUTPUT SWITCHING – RELAY |
| VOLTAGE | 9V BATTERY (APPLIED TO BATTERY CLIP) | 12/24V DC |
| AMPS | 35mA OPERATING MAX @8V DC, STANDBY CURRENT 10uA TYPICAL | REPLAY RATING 5A, OUTPUT RATING 8A |
| FREQUENCY | 433.92MHz, MODULATION FM | 433.92 MHz (OTHER FREQUENCIES AVAILABLE ON REQUEST, MIN 10PCS) |
| PROTECHTION CLASS | IP55 | IP68 |
| ELECTRICAL PROTECTION | REVERSE POLARITY PROTECTED | – |
| OUTPUTS | – | 4 CHANGE OVER RELAYS |
| ANTENNA | BUILT IN LOOP ANTENNA | INTERNAL 433.92MHz MICRO (EXTERNAL OPTIONAL) |
| WIRING | – | OPTIONAL MULTI PIN WIRING LOOM |
| CONNECTION | – | 6 PIN DEUTSCH |
