Monoblock Valves
Showing 1–9 of 17 results
-
-

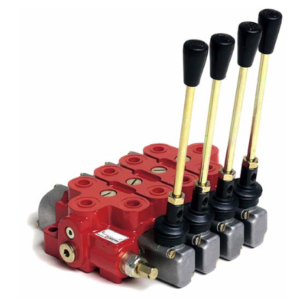

Monoblock ValvesHDM140 Monoblock Valves
Description
Series HDM directional control valves feature compact, cast monoblock bodies and have high operating pressure ratings.
A notable feature is the very low level of internal spool leakage.
Advantages
- Low weight, small dimensions
- Operating pressure up to 350 bar
- Excellent price/performance ratio
- Elimination of potential leakage between sections
- Easy maintenance
Manufactured By
(0 reviews) -

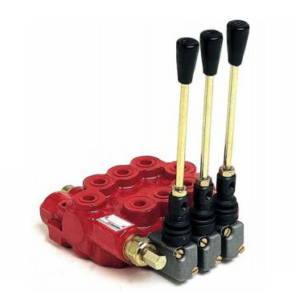

Monoblock ValvesHDM11P Monoblock Valve
Description
Series HDM directional control valves feature compact, cast monoblock bodies and have high operating pressure ratings.
The HDM series is available in the following versions: open centre, parallel/series, closed centre and carry-over.
A further notable feature is the very low level of internal spool leakage.
Advantages
- Low weight, small dimensions
- Operating pressure up to 350 bar
- Excellent price/performance ratio
- Elimination of potential leakage between sections
- Easy maintenance
Manufactured By
(0 reviews) -

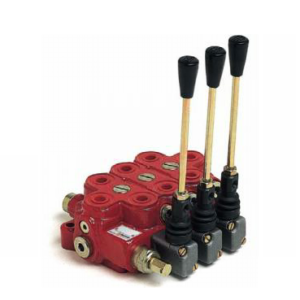

Monoblock ValvesHDM11S Monoblock Valves
Description
Series HDM directional control valves feature compact, cast monoblock bodies and have high operating pressure ratings.
A further notable feature is the very low level of internal spool leakage.
Number of spools d’axes: 1 – 6
Nominal flow rate l/min: 45
Max. inlet pressure (P) bar: 250
Max. work port press. (A/B) bar: 320MANUFACTURED BY
(0 reviews) -

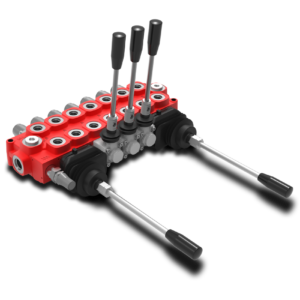

Monoblock ValvesQ25 Monoblock Valves
Description
Compact and versatile monoblock valves
Available up to 8 sections, the Q25 and Q45 valves can be used in applications that require low flow rates and compact and versatile hydraulic components. The perfect solution for several applications: Agriculture, Earth Moving Machines, Lifting and Transport, Industrial Vehicles. The Q45 valve is ideal for flow rate up to 50 l/min (13 US gpm).
– Antishock, anticavitation and combined flanged valves
– Manual, hydraulic, electric push-pull, pneumatic and electro-pneumatic controls.
Nominal Flow Rating l/min – (US gpm): Q45: 50 (13)
Max. Pressure bar – (psi): 350 (5100)
Number of Sections: 8
Pitch mm (in): 38 (1,50)Manufactured By
(0 reviews) -
Monoblock ValvesHCM45 Monoblock Valves
Description
Compact and simple with the versatility of the configuration of up to 4 sections. It can be fitted with manual and electric push-pull controls.
Nominal Flow Rating l/min – (US gpm): 15 (4)
Max. Pressure bar – (psi): 280 (4050)
Number of Sections: 4
Pitch mm (in): 28 (1,10)Manufactured By
(0 reviews) -

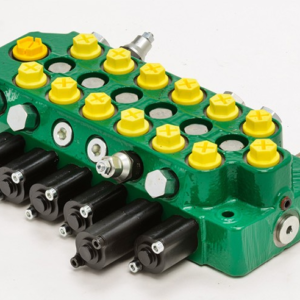

Monoblock ValvesVDM6A Monoblock Valves
Description
Monoblock composed of 1-7 mechanical sections.
-
Interchangeability of all the spools.
-
Monoblock construction with sectional concept.
-
Spool construction in steel, hardened and chromium-plated.
-
Parallel circuit, load check valve protection on each section.
-
Auxiliary valve either on port A or B or on both.
-
Single/double acting conversion port valve.
-
Electric carry over.
Manufactured By
(0 reviews) -
-

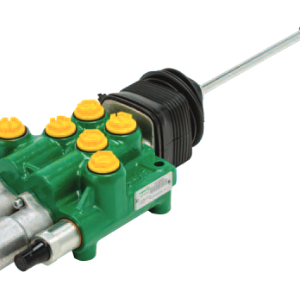

Monoblock ValvesVDM07 Monoblock Valves
Description
- Parallel circuit with load check valve on pressure “P” line.
- Auxiliary valve on B port or relief valve on neutral line that can unload both the ports.
- Cast-iron monoblock construction.
- Steel spools, hardened and nickel plated.
- Power beyond (HPCO) configuration.
- Spool with overcenter valve built-in and hydraulic kick-out built-in.
Manufactured By
(0 reviews) -
