Description
Flow Divider Features
The White Hydraulics’ flow dividers offer many advantages over other designs.
All flow dividers utilise White Hydraulics’ patented Roller Stator Design. This design incorporates rollers for the critical sealing points of the rotor assembly. Benefits of this design include minimised leakage and less internal friction which result in higher mechanical and volumetric efficiency than other designs. The use of the Roller Stator design also guarantees more accurate output flows when pressure differentials are present at the outputs. The White Hydraulics’ flow dividers are also significantly quieter than many current designs, offering an advantage where application noise levels are critical.
White ‘Roller Stator’ Rotary Flow Dividers

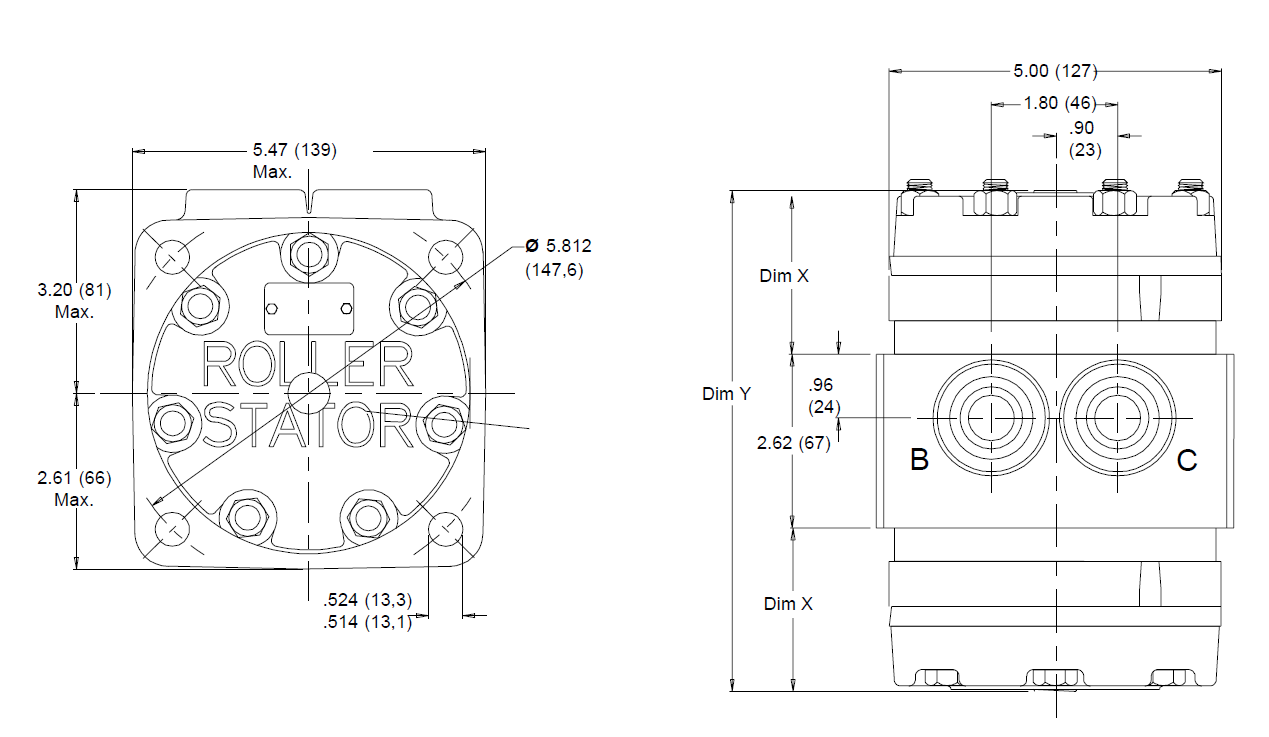

| Stock No. | Type | Description | Port Configurations | Flow Rate GPM | Dim ‘Y’ | Dim ‘X’ | ||||
| Inlets | Outlets | in | mm | in | mm | in | mm | |||
| FD00101000 | 2 Way | Rotary Flow Divider | 1 | 2 | 2-Oct | 7.31 | 185.7 | 2.35 | 59.6 | |
| FD00181800 | 2 Way | Rotary Flow Divider | 1 | 2 | Oct-30 | 8.23 | 209 | 2.81 | 71.3 | |
| FD00242400 | 2 Way | Rotary Flow Divider | 1 | 2 | 30 – 40 | 8.73 | 221.7 | 3.06 | 77.7 | |
| FD00181818 | 3 Way | Rotary Flow Divider | 1 | 3 | Apr-40 | 10.92 | 277.4 | – | – | |
| FD18181818 | 4 Way | Rotary Flow Divider | 2* | 4 | May-50 | 15.48 | 393.2 | – | – | |
| * Both inlets must be used. | ||||||||||
