Description
High Pressure | Equal Flow – With Relief
High pressure flow dividers come standard with two or four sections. Each section comes with a differential relief
valve from output to input which allows a ‘lagging’ cylinder to catch up at end of stroke. Alternative multi-section and
mixed section units are available on request.
Relief Valve Settings:
Standard setting on relief valve is 51 bar (750 psi) differential between outlet and inlet pressure. (These relief valves do not give system relief.)
Maximum total inlet flow (litres/min) is based on 3000 rpm.
For a more quiet operation limit speed to between 1500 and 2500 rpm.
| Bolt Torque (Nm) | Dim A (mm) | Dim B (mm) | Weight (kg) |
| 63.65 | 100.5 | 85 | 15.4 |

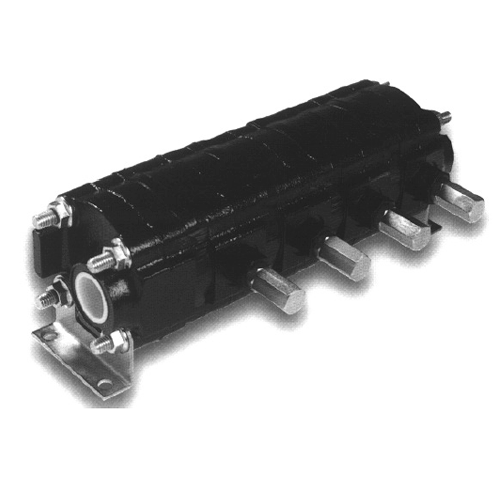

HSR Series Rotaty Flow Dividers – 2 Way
| Stock No. | Description | No. of Sections | Total Max Inlet (GPM) | Displacement | Max. Press. Intermittent (PSI) | Max. Press. Continuous (PSI) | Max. Diff. Between |
| CC/Rev | Section (PSI) | ||||||
| HSR30404 | Rotary Flow Divider | 2 | 13 | 6.7 | 5000 | 3000 | 750 |
| HSR30707 | Rotary Flow Divider | 2 | 21 | 11.7 | 5000 | 3000 | 750 |
| HSR31010 | Rotary Flow Divider | 2 | 29 | 16.4 | 5000 | 3000 | 750 |
| HSR31212 | Rotary Flow Divider | 2 | 37 | 20 | 5000 | 3000 | 750 |
| HSR31515 | Rotary Flow Divider | 2 | 44 | 24 | 5000 | 3000 | 750 |
