Description

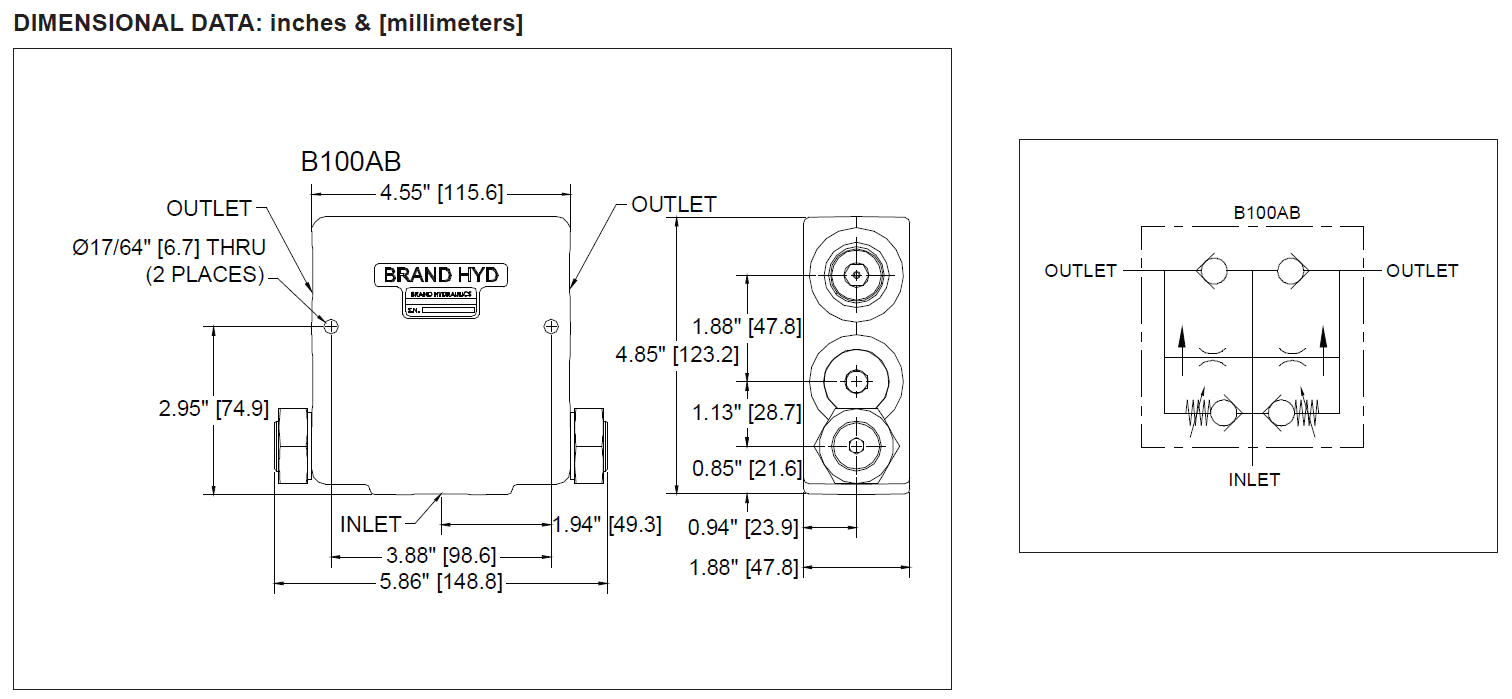

B100AB Flow Divider / Combiner Valves
Pressure Compensated Proportional Flow Divider Valves Auto Bypass with Free Return
| Stock No. | Description | Body | Flow Range | Port Size | Max Pressure |
| B100AB38 | 50:50 Flow Divider | Cast Iron | 8 – 30 LPM | 3/8” NPT | 210 BAR |
| B100AB12 | 50:50 Flow Divider | Cast Iron | 30 – 60 LPM | 1/2” NPT | 210 BAR |
| B100AB34 | 50:50 Flow Divider | Cast Iron | 60 – 113 LPM | 3/4” NPT | 210 BAR |
Pressure Compensated Proportional Flow Divider Valves with Free Return
| Stock No. | Description | Body | Flow Range | Port Size | Max Pressure |
| B10024SAE316 | 50:50 Flow Divider | Cast Iron | 113 – 208 LPM | 1-7/8” UNO | 210 BAR |
| B10024SAE380 | 50:50 Flow Divider | Cast Iron | 170 – 284 LPM | 1-7/8” UNO | 210 BAR |
