IC441319####

IC441319####

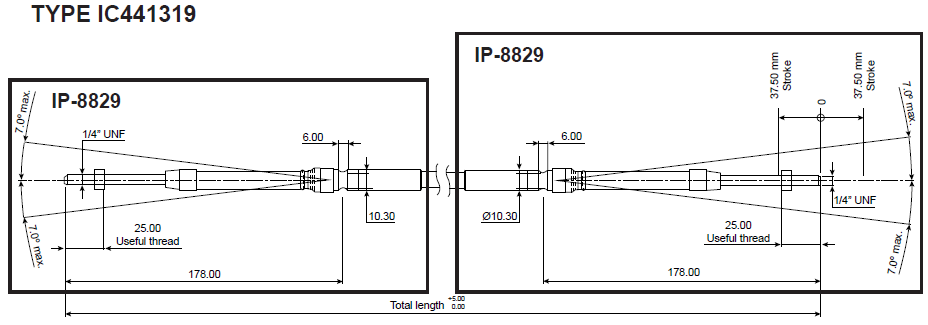

Series IC441319

Code IC441319####



Description

  • Push-Pull Cable
  • Travel Usable Stroke 37.5mm
  • Min Bending Radius 200mm
  • Operating Temperature -30 + 80 degC
  • Min Disconnection Load of Rope & Conduit Terminals 3000N
  • 8deg Conical Swivel and Double Rope Wiper
  • Rope Terminal Thread 1/4″UNF
  • Bayonet: 10.3mm



Manufactured By

In Stock
Add to Product Enquiry

Description

Stock No. Type Length Description
IC441319-0750 Morse 750 mm Bayonet 1/4” UNF
IC441319-1000 Morse 1000 mm Bayonet 1/4” UNF
IC441319-1250 Morse 1250 mm Bayonet 1/4” UNF
IC441319-1500 Morse 1500 mm Bayonet 1/4” UNF
IC441319-1750 Morse 1750 mm Bayonet 1/4” UNF
IC441319-2000 Morse 2000 mm Bayonet 1/4” UNF
IC441319-2500 Morse 2500 mm Bayonet 1/4” UNF
IC441319-3000 Morse 3000 mm Bayonet 1/4” UNF
