IC741608####

IC741608####

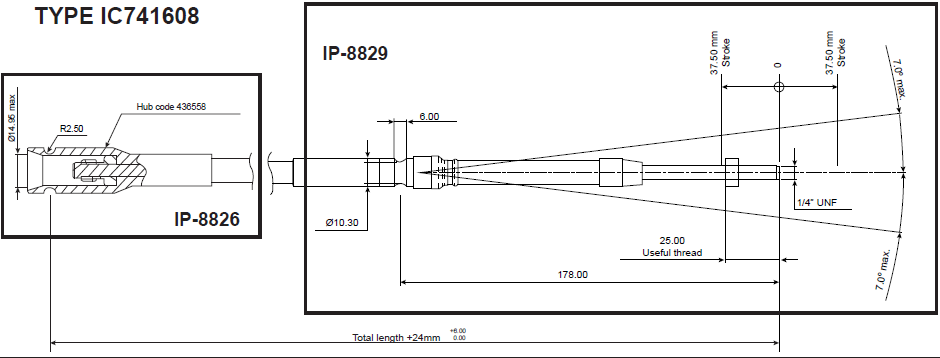

Series IC741608

Code: IC741608xxxx



Description

  • Push-Pull Cable
  • Travel Usable Stroke 35mm
  • Min Bending Radius 200mm
  • Operating Temperature -30 + 80 degC
  • Min Disconnection Load of Rope & Conduit Terminals 3000N
  • 8deg Conical Swivel and Rope Wiper
  • Rope Terminal Thread 1/4″UNF
  • Connecting Hub for Morse Controls

Manufactured By

In Stock
Add to Product Enquiry

Description

Stock No. Type Length Description
IC741608-0750 Morse 750 mm Hub – Bayonet 1/4” UNF
IC741608-1000 Morse 1000 mm Hub – Bayonet 1/4” UNF
IC741608-1250 Morse 1250 mm Hub – Bayonet 1/4” UNF
IC741608-1500 Morse 1500 mm Hub – Bayonet 1/4” UNF
IC741608-1750 Morse 1750 mm Hub – Bayonet 1/4” UNF
IC741608-2000 Morse 2000 mm Hub – Bayonet 1/4” UNF
IC741608-2500 Morse 2500 mm Hub – Bayonet 1/4” UNF
IC741608-3000 Morse 3000 mm Hub – Bayonet 1/4” UNF
