IC741112####

IC741112####

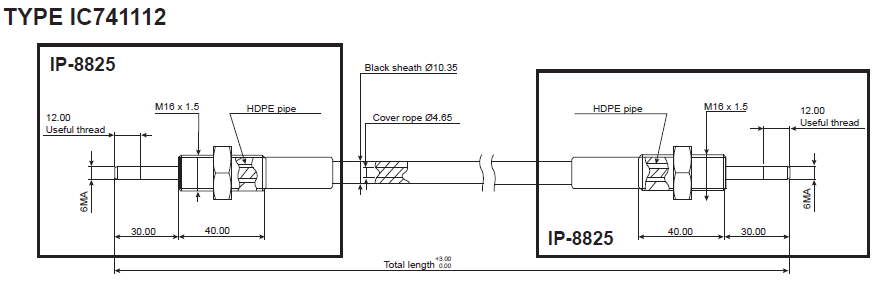

Series IC741112

Code IC741112####



Description

  • Push-Pull Cable
  • Travel Usable Stroke 35mm
  • Min Bending Radius 200mm
  • Operating Temperature -30 + 80 deg C
  • Min Disconnection Load of Rope & Conduit Terminals 3000N
  • Rope Terminal Thread M6 x 1
  • Conduit Terminal Thread
  • M16 x 1.5



Manufactured By

In Stock
Add to Product Enquiry

Description

Stock No. Type Length Description
IC741112-0750 Universal 750 mm Fixed M16 / M6
IC741112-1000 Universal 1000 mm Fixed M16 / M6
IC741112-1250 Universal 1250 mm Fixed M16 / M6
IC741112-1500 Universal 1500 mm Fixed M16 / M6
IC741112-1750 Universal 1750 mm Fixed M16 / M6
IC741112-2000 Universal 2000 mm Fixed M16 / M6
IC741112-2500 Universal 2500 mm Fixed M16 / M6
IC741112-3000 Universal 3000 mm Fixed M16 / M6
