IC741635U####

IC741635U####

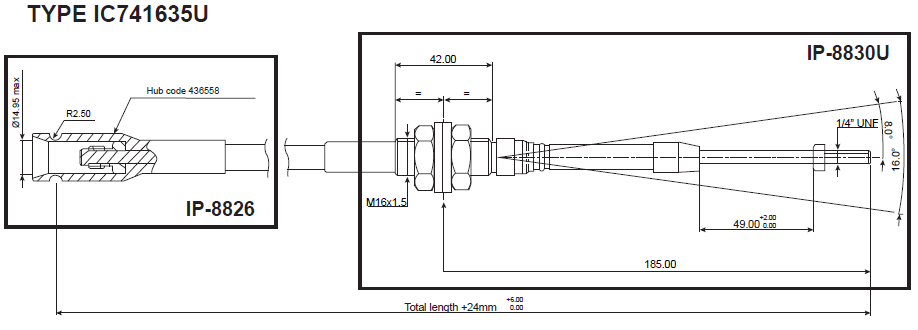

Series IC741635U

Code IC741635U####



Description

  • Push-Pull Cable
  • Travel Usable Stroke 35mm
  • Min Bending Radius 200mm
  • Operating Temperature -30 + 80 degC
  • Min Disconnection Load of Rope & Conduit Terminals 3000N
  • 8 deg Conical Swivel and Rope Wiper
  • Rope Terminal Thread 1/4″UNF
  • Bulkhead M16x1.5
  • Connecting Hub for Morse Controls



Manufactured By

In Stock
Add to Product Enquiry

Description

No. Type Length Description
IC741635U-0750 Morse 750 mm Hub M16 / M6 Bulkhead
IC741635U-1000 Morse 1000 mm Hub M16 / M6 Bulkhead
IC741635U-1250 Morse 1250 mm Hub M16 / M6 Bulkhead
IC741635U-1500 Morse 1500 mm Hub M16 / M6 Bulkhead
IC741635U-1750 Morse 1750 mm Hub M16 / M6 Bulkhead
IC741635U-2000 Morse 2000 mm Hub M16 / M6 Bulkhead
IC741635U-2500 Morse 2500 mm Hub M16 / M6 Bulkhead
