IC741908####

IC741908####

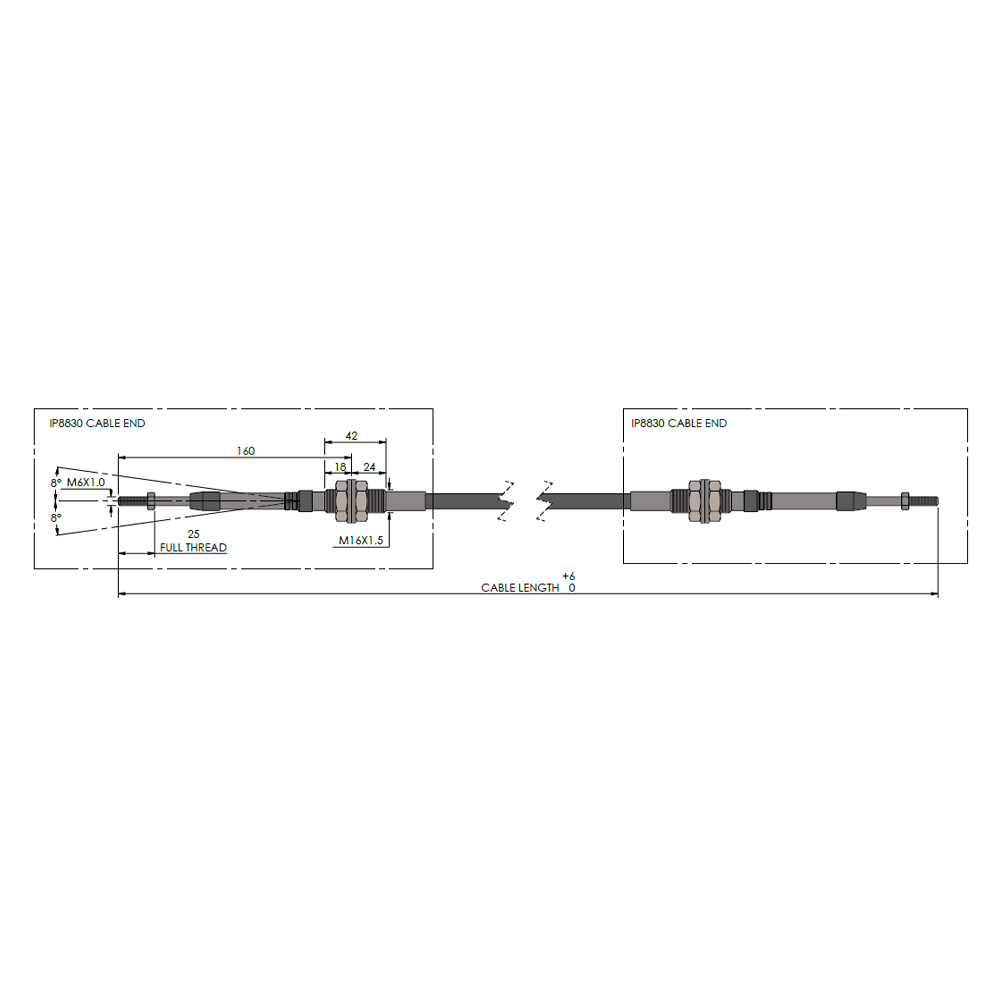

Series IC741908

Code IC741908####



Description

  • Push-Pull Cable
  • Travel Usable Stroke 35mm
  • Min Bending Radius 200mm
  • Operating Temperature -30 + 80 degC
  • Min Disconnection Load of Rope & Conduit Terminals 3000N
  • 8deg Conical Swivel and Double Rope Wiper
  • Rope Terminal Thread M6x1
  • Double Bulkhead M16x1.5



Manufactured By

In Stock
Add to Product Enquiry

Description

Stock No. Type Length Description
IC741908-0750 Bulkhead 750 mm Bulkhead M16 / M6
IC741908-1000 Bulkhead 1000 mm Bulkhead M16 / M6
IC741908-1250 Bulkhead 1250 mm Bulkhead M16 / M6
IC741908-1500 Bulkhead 1500 mm Bulkhead M16 / M6
IC741908-1750 Bulkhead 1750 mm Bulkhead M16 / M6
IC741908-2000 Bulkhead 2000 mm Bulkhead M16 / M6
IC741908-2500 Bulkhead 2500 mm Bulkhead M16 / M6
