Description
| SERIES | L765 |
| BRAND | LC OLEODINAMICA |
| MAX FLOW LPM | 10 |
| NOTES | 8 WAY 2 POSITION PATTERN CHANGER |
| MAX PUMP FLOW l/min | 10 |
| MAX WORKING PRESSURE bar | 210 |
| CONSTRUCTION | SPOOL TYPE |
| CIRCUIT | 8 WAY 2 POSITION PATTERN CHANGER |
| ACTUATION | SOLENOID OPERATED |

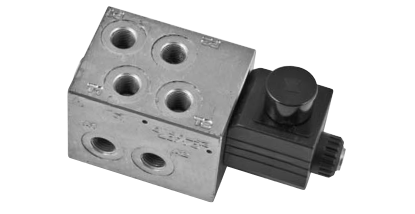

L765 Solenoid Operated Selector Valves
Description
8 way 2 position valve. Directional spool valve with direct solenoid control. Normally used to set up the remote control (ISO – SAE) in the earth moving machine. Control spool operated by solenoid, with easily removable coil fastened by a ring nut. Wet pin tube for DC coil, with push rod for mechanical override in case of voltage shortage- Unrestricted 360° orientation of DC coil.
