Solenoid Operated Selector Valves
Showing all 4 results
-

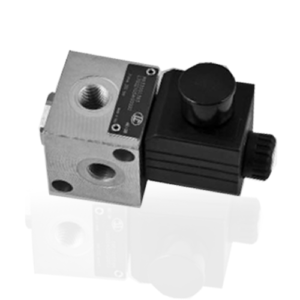

Solenoid Operated Selector ValvesVS70/80/100/105 Solenoid Operated Selector Valves
Description
– 3 way 2 position valve.
– Directional spool valve with direct solenoid control.
– Upon request, hydraulic / pneumatic pilot , or manual push and twist control.
– Control spool operated by screwed-in solenoid, with easily extractable coil fastened by a ring nut.
– Wet pin tube for DC coil, with push rod for mechanical override in case of voltage shortage.
– Unrestricted 360° orientation of DC coil. – Control spool held in normal position by return spring.
– Optional manual override (push-button or screw type)Manufactured By
(0 reviews) -
Solenoid Operated Selector ValvesVS120/150/152/240/280/300/305/400 Solenoid Operated Selector Valves
Description
6 way 2 position valve.
Directional spool valve with direct solenoid control.
Hydraulic / pneumatic pilot available as option.
Control spool operated by solenoid, with easily removable coil fastened by a ring nut.
Wet pin tube for DC coil, with push rod for mechanical override in case of voltage shortage.
Unrestricted 360° orientation of DC coil.
Control spool held in normal position by return spring.
Optional manual override (push-button or screw type).Manufactured By
(0 reviews) -
Solenoid Operated Selector ValvesELFB Solenoid Operated Selector Valves
Description
Manufactured By
(0 reviews) -

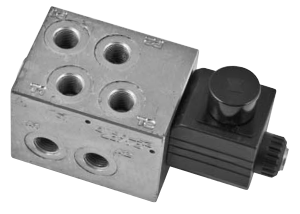

Solenoid Operated Selector ValvesL765 Solenoid Operated Selector Valves
Description
8 way 2 position valve. Directional spool valve with direct solenoid control. Normally used to set up the remote control (ISO – SAE) in the earth moving machine. Control spool operated by solenoid, with easily removable coil fastened by a ring nut. Wet pin tube for DC coil, with push rod for mechanical override in case of voltage shortage- Unrestricted 360° orientation of DC coil.
Manufactured By
(0 reviews)
