Description
| Technical Specifications | |
| Maximum input pressure | 100 bar |
| Maximum back pressure on tank line | 3 bar |
| Oil input capacity | 16 l/min |
| Hysteresis | 0.9 bar |
| Hydraulic fluid | Mineral oil |
| Fluid temperature range | -20+80°C |
| Fluid viscosity range | 10÷300 Cst |
| Recommended filtration | 25 μ Absolute |
| Recommended | 8mm dia rigid, |
| operating pipes | 1/4” BSP flexible |
| Body | Cast iron |
| Plunger | Stainless steel |
| Plunger guide | Brass |
| Handles Microswitch Breaking | |
| Direct current | Load resistive 4.8A/30 VDC |
| Alternating current | Load resistive 1.5A/250 VAC |
| Protection | IP 40 |

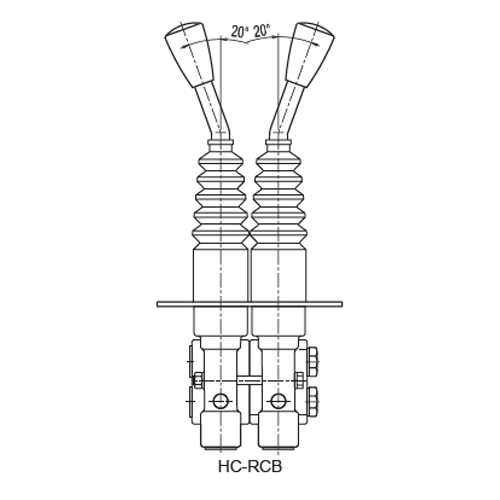

| RCB STYLE | |||
| RCB01A02 | HCRCB01A02MAMWP10002A02MAMWP100RAG02 | Hydraulic Remote Control Double | 5 – 25 bar |
| RCB01A04 | HCRCB01A04MAMWP10002A04MAMWP100RAG02 | Hydraulic Remote Control Double | 6 – 40 bar |
| RCB01*** | HCRCB01***MAMWP10002***MAMWP100RAG02 | Hydraulic Remote Control Double | – |
| *** Denotes Metering Curve e.g. A01 (6 – 20 Bar) | |||
