RCX

RCX
RCX - Image 2

Description

Lever operated hydraulic joystick

Hydraulic joystick, double function, available with several types of handles. Single lever joystick to control two directional control valve working sections.

Type: Lever type
Nr. of Ports: 4
Nominal Flow Rating l/min – (US gpm): 12 (3,2)
Max. Pressure bar – (psi): 100 (1450)



MANUFACTURED BY





In Stock
Add to Product Enquiry

Description

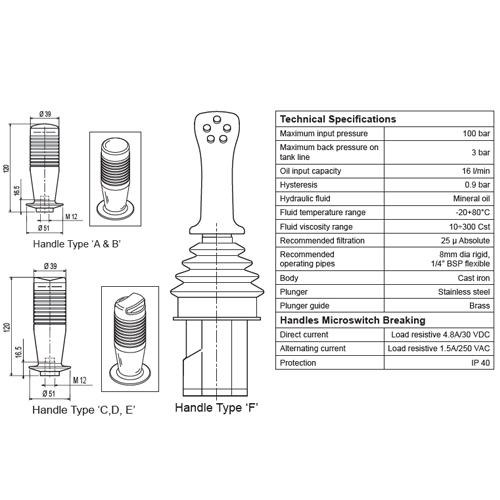

Technical Specifications
Maximum input pressure 100 bar
Maximum back pressure on tank line 3 bar
Oil input capacity 16 l/min
Hysteresis 0.9 bar
Hydraulic fluid Mineral oil
Fluid temperature range -20+80°C
Fluid viscosity range 10÷300 Cst
Recommended filtration 25 μ Absolute
Recommended 8mm dia rigid,
operating pipes 1/4” BSP flexible
Body Cast iron
Plunger Stainless steel
Plunger guide Brass
Handles Microswitch Breaking
Direct current Load resistive 4.8A/30 VDC
Alternating current Load resistive 1.5A/250 VAC
Protection IP 40





RCX STYLE
Stock No. Model Code Description
RCX01A01 HCRCX01A01MAAWA27RAG02 Hydraulic Remote Control Joystick 6 – 20 bar
RCX01A02 HCRCX01A02MAAWA27RAG02 Hydraulic Remote Control Joystick 5 – 25 bar
RCX01A03 HCRCX01A03MAAWA27RAG02 Hydraulic Remote Control Joystick 2 – 13 bar
RCX01A04 HCRCX01A06MAAWA27RAG02 Hydraulic Remote Control Joystick 6 – 40 bar
RCX01A05 HCRCX01A05MAAWA27RAG02 Hydraulic Remote Control Joystick 0 – 64 bar
RCX01A06 HCRCX01A06MAAWA27RAG02 Hydraulic Remote Control Joystick 4 – 17 bar
RCX01A07 HCRCX01A07MAAWA27RAG02 Hydraulic Remote Control Joystick 5 – 15 bar
RCX01A08 HCRCX01A08MAAWA27RAG02 Hydraulic Remote Control Joystick 2 – 18 bar
RCX01A09 HVRCX01A09MAAWA27RAG02 Hydraulic Remote Control Joystick 5 – 20 bar
RCX01C01 HCRCX01A10MAAWA27RAG02 Hydraulic Remote Control Joystick 2 – 15 bar
RCX Options and Accessories
Stock No. Model Code Description
RCXAWA27 Type A Handle without Microswitch (Standard)
RCXBWA27 Type B Handle with Microswitch to Close
RCXDWA27 Type D Handle with Dual Microswitch
RCXDWB52 Type D 15° Handle with Dual Microswitch 15° Angle



Technical Data

Click here to view Technical Data

Parts Breakdown

Click here to view Technical Data
