Description

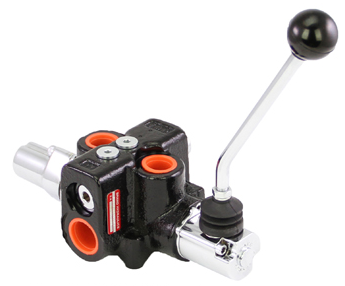

The Brand, SDCF combines the features of a four-way directional control valve, a full range pressure compensated by-pass type flow control valve, and an adjustable pilot operated pressure relief valve all in one compact package. This valve reduces the number of fittings, plumbing and potential leakage points in hydraulic circuits. The manual handle allows the customer to meter the flow out of either port. Flow to the work port is directly proportional to the movement of the lever. Flow out of each work port is constant regardless of load changes, this allows the customer to maintain smooth and constant movement of a cylinder or motor. Every SDCF comes standard with a pilot operated relief (1500 psi (102 bar) standard setting). The tank port must be plumbed directly back to tank.
| SERIES | SDCF |
| BRAND | BRAND HYDRAULICS |
| MAX FLOW LPM | 68 |
| NOTES | PRESSURE COMPENSATED |
| MAX PUMP FLOW l/min | 68 |
| MAX WORKING PRESSURE bar | 210 |
| CONSTRUCTION | SYMMETRICAL |
| CIRCUIT | PARALLEL PRESSURE COMPENSATED |
| NUMBER OF SECTIONS | 1 |
| SPOOL ACTUATION | MANUAL OR ROTARY HANDLE WITH SPRING CENTRE OR FRICTION DETENT |
| SERIES | SDCF |
| MONOBLOCK STYLE | YES |
| PRESSURE COMPENSATED | YES |
