FPRBC Series Manual Flow Control

FPRBC Series Manual Flow Control

In line pressure compensated two-way flow regulator.

Materials: aluminum body (std), steel body on request. Internal parts are in hardened steel.

Rated flow:

  •  30 l/min for 3/8”;
  •  50 l/min for 1/2”;
  •  90 l/min for 3/4
  • Max. pressure: 250 bar (std), 350 bar (S)

Manufactured By

In Stock
Add to Product Enquiry

Description

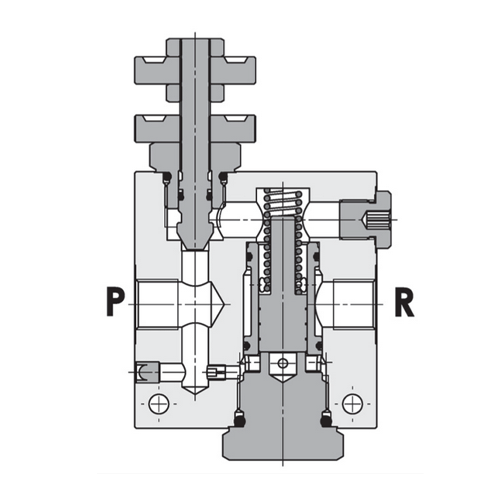

Two-Way Pressure Compensated Flow Regulator

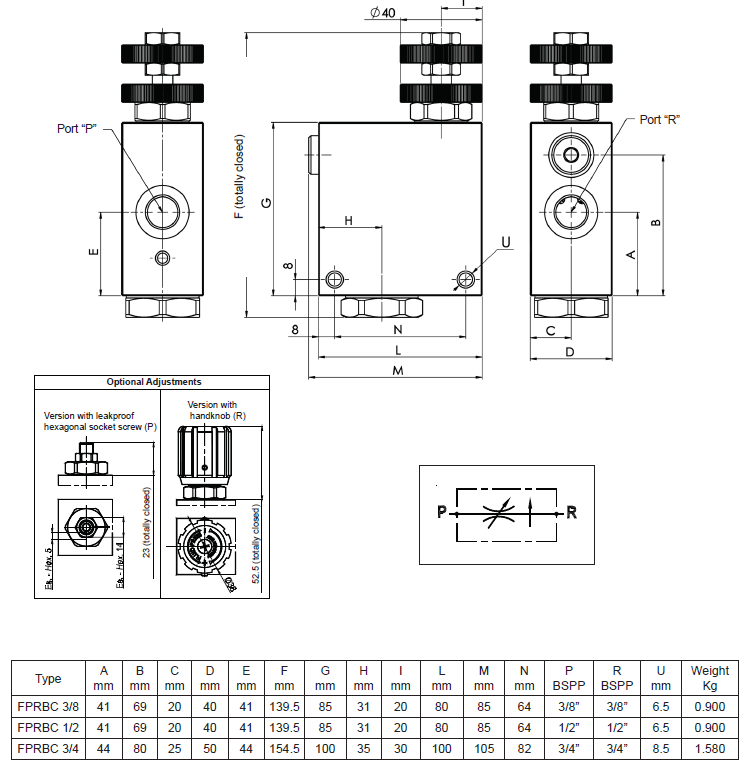

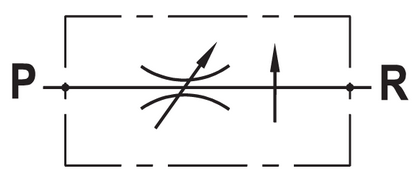

Stock No. Description Maximum Flow Maximum Pressure Port Body Schematic
Body Flow Control 30 LPM 210 BAR 3/8” BSPP Aluminium
FPRBC12G Flow Control 50 LPM 210 BAR 1/2” BSPP Aluminium
FPRBC34G Flow Control 90 LPM 210 BAR 3/4” BSPP Aluminium
