FPRUC Series Manual Flow Control

FPRUC Series Manual Flow Control

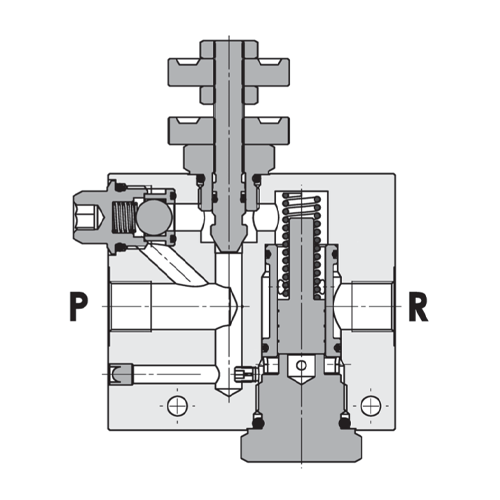

In line pressure compensated flow regulator, free reverse flow.



TECHNICAL SPECIFICATIONS

Materials: aluminum body (std), steel body on request. Internal parts are in hardened steel.

Rated flow:

  • – 30 l/min for 3/8”;
  • – 50 l/min for 1/2”;
  • – 90 l/min for 3/4

Max. pressure: 250 bar (std), 350 bar (S)

Manufactured By

In Stock
Add to Product Enquiry

Description

Two-Way Pressure Compensated Flow Regulator with Reverse Flow

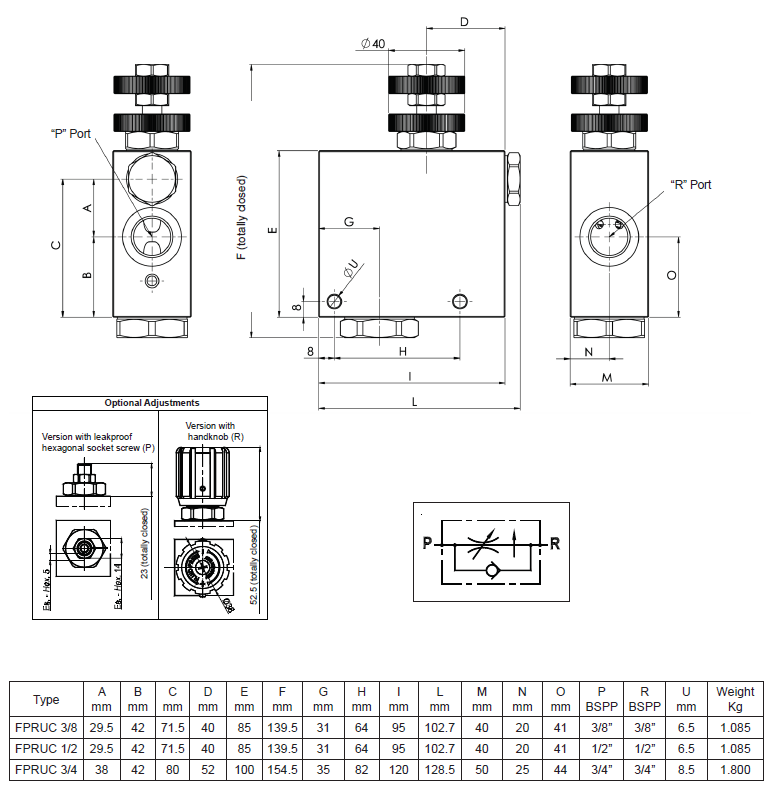

Stock No. Description Maximum Flow Maximum Pressure Port Size Body Schematic
FPRUC38G Flow Control 30 LPM 210 BAR 3/8” BSPP Aluminium
FPRUC12G Flow Control 50 LPM 210 BAR 1/2” BSPP Aluminium
FPRUC34G Flow Control 90 LPM 210 BAR 3/4” BSPP Aluminium
