Materials: Aluminium body (std), steel body on request. Internal parts are in hardened steel.
Rated flow:

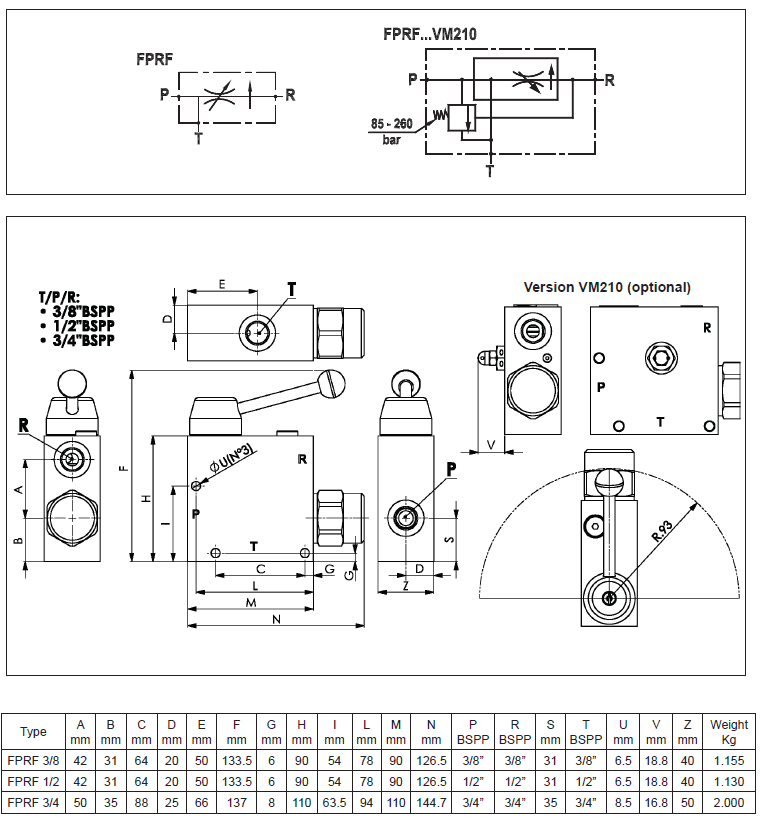

| Stock No. | Description | Maximum Flow | Maximum Pressure | Port Size | Body |
| FPRF38H | Flow Control | 50 LPM | 250 BAR | 3/8” BSPP | Aluminium |
| FPRF12H | Flow Control | 90 LPM | 250 BAR | 1/2” BSPP | Aluminium |
| FPRF34H | Flow Control | 150 LPM | 210 BAR | 3/4” BSPP | Aluminium |
The PRINCE valve model RD-1900 is a pressure compensated adjustable flow control valve. By rotating the handle the flow out the ‘CF’ or
controlled flow port can be varied within the range given in the charts below.
Materials: aluminium body (std), steel body on request. Internal parts are in hardened steel.
Rated flow:
