Two Way
Showing 1–9 of 11 results
-
-
Two WayTwo-Way Pressure Compensated Flow Regulators With Free Reverse Flow FPRUC Series
Manufactured By
(0 reviews) -

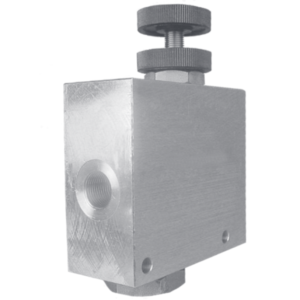

Two WayTwo-Way Pressure Compensated Flow Regulators With Free Reverse Flow VRFC2-VU Series
Manufactured By
(0 reviews) -
Two WayRD Series Manual Flow Control
Description
The PRINCE valve model RD-1900 is a pressure compensated adjustable flow control valve. By rotating the handle the flow out the ‘CF’ or
controlled flow port can be varied within the range given in the charts below.Manufactured By
(0 reviews) -

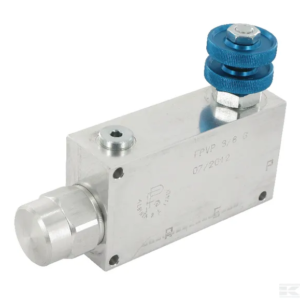

Two WayFPVP Manual Flow Control Valves
Three-Way Type Pressure Compensated Flow Regulators – Excess Flow in Pressure.
Manufactured By
(0 reviews) -

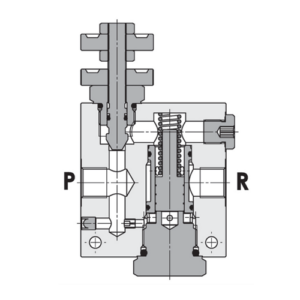

Two WayFPRBC Series Manual Flow Control
In line pressure compensated two-way flow regulator.
Materials: aluminum body (std), steel body on request. Internal parts are in hardened steel.
Rated flow:
- 30 l/min for 3/8;
- 50 l/min for 1/2;
- 90 l/min for 3/4
- Max. pressure: 250 bar (std), 350 bar (S)
Manufactured By
(0 reviews) -

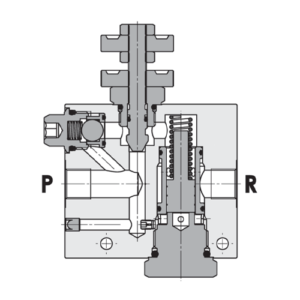

Two WayFPRUC Series Manual Flow Control
In line pressure compensated flow regulator, free reverse flow.
TECHNICAL SPECIFICATIONS
Materials: aluminum body (std), steel body on request. Internal parts are in hardened steel.
Rated flow:
- – 30 l/min for 3/8;
- – 50 l/min for 1/2;
- – 90 l/min for 3/4
Max. pressure: 250 bar (std), 350 bar (S)
Manufactured By
(0 reviews) -
Two WayFPRF Manual Flow Control
In line three way pressure compensated flow regulator, with exceeding flow to tank.
TECHNICAL SPECIFICATIONS
Materials: aluminium body (std), steel body on request. Internal parts are in hardened steel.
Rated flow:
- 50 l/min with 30 l/min in R port for 3/8
- 90 l/min with 50 l/min in R port for 1/2
- 150 l/min with 90 l/min in R port for 3/4
- 240 l/min with 150 l/min in R port for 1
- Max. pressure: 250 bar (std), 350 bar (ver.S)
- Standby pressure: 5 bar
Manufactured By
(0 reviews)
