In-Line Adjustable Needle Valve – FT257 Gold Series

In-Line Adjustable Needle Valve - FT257 Gold Series
In-Line Adjustable Needle Valve - FT257 Gold Series - Image 2

Description

  • Inline Adjustable Needle Valves
  • Inline Adjustable Needle Valves c/w Reverse Free Flow Check

Manufactured By

In Stock
Add to Product Enquiry

Description

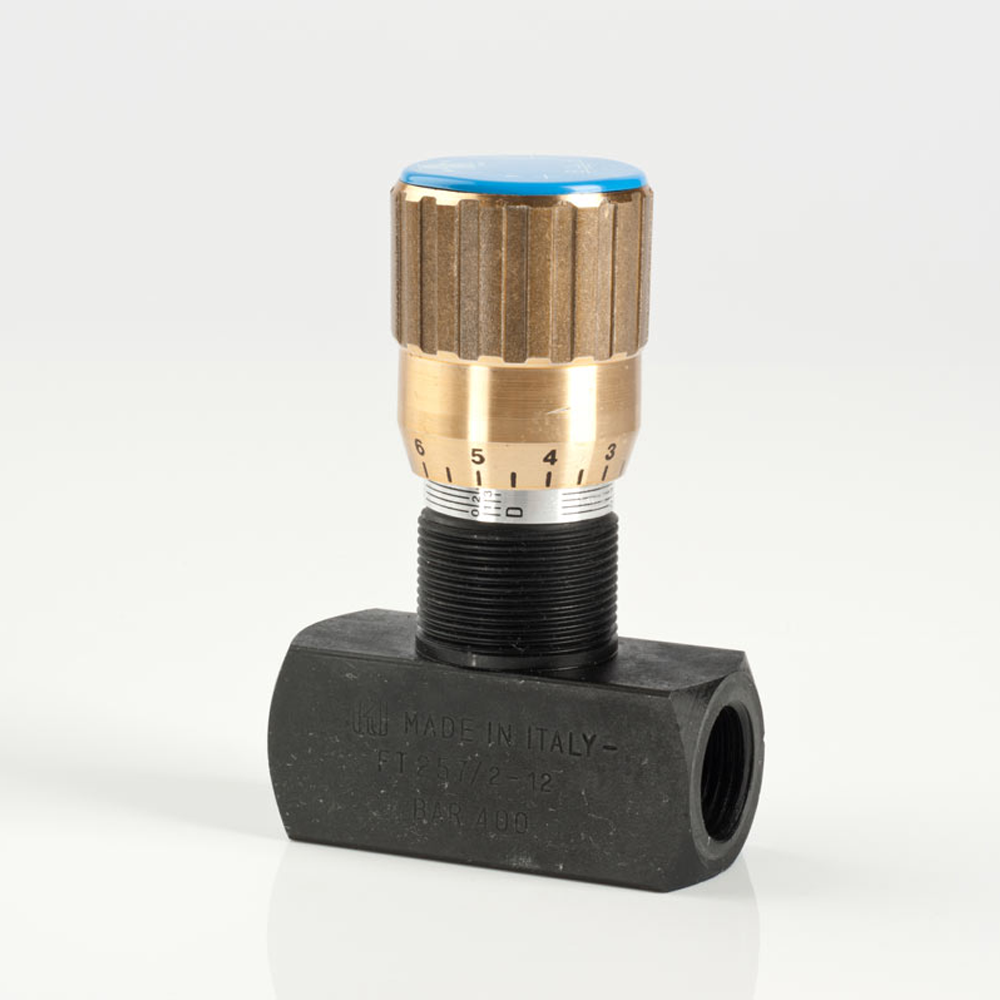

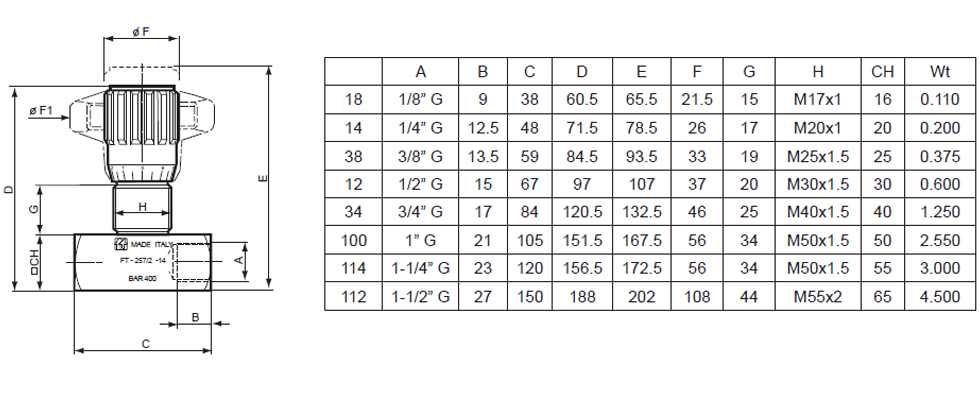

Inline Adjustable Needle Valves

Stock No. Description Port Size BSPP Max. Flow Rate Max. Working Pressure Min. Burst Pressure
FT257218 Adjustable Needle Valve 1/8” 10 LPM 400 BAR 1600 BAR
FT257214 Adjustable Needle Valve 1/4” 15 LPM 400 BAR 1600 BAR
FT257238 Adjustable Needle Valve 3/8” 30 LPM 400 BAR 1600 BAR
FT257212 Adjustable Needle Valve 1/2” 50 LPM 400 BAR 1600 BAR
FT257234 Adjustable Needle Valve 3/4” 80 LPM 400 BAR 1600 BAR
FT2572100 Adjustable Needle Valve 1” 150 LPM 320 BAR 1300 BAR
FT2572114 Adjustable Needle Valve 1-1/4” 200 LPM 320 BAR 1300 BAR
FT2572112 Adjustable Needle Valve 1-1/2” 200 LPM 320 BAR 1300 BAR

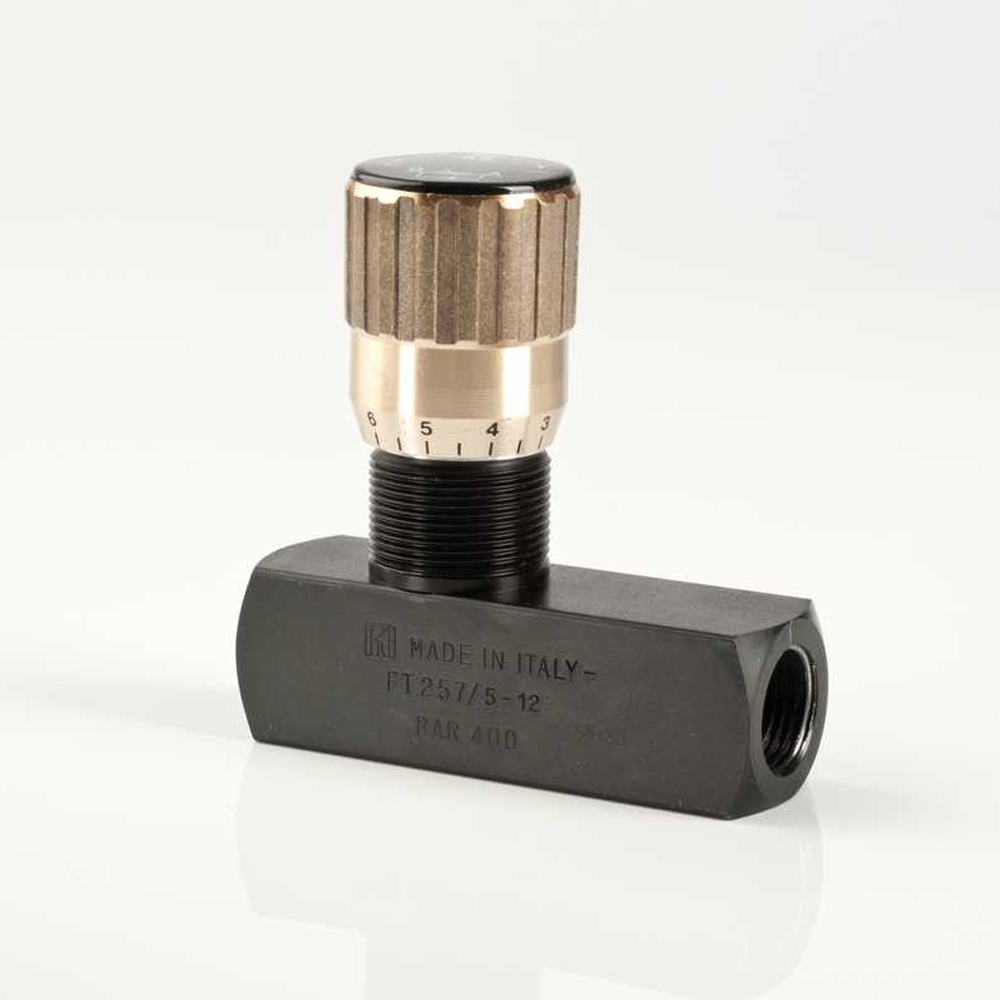

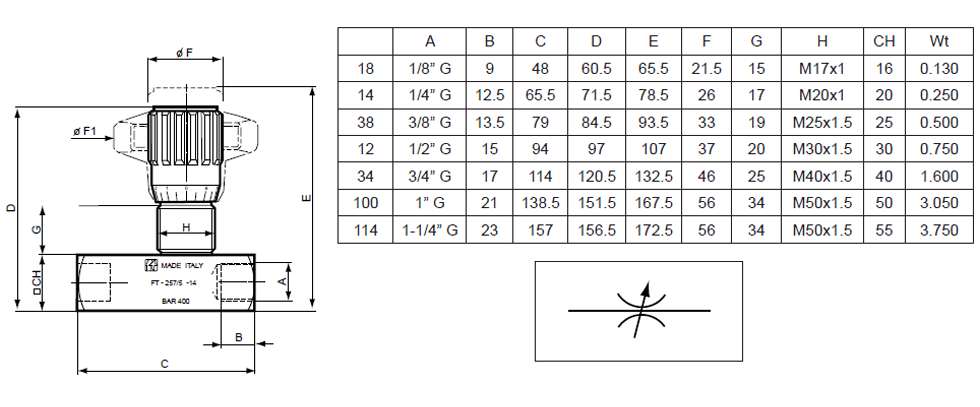

Inline Adjustable Needle Valves C/W Reverse Free Flow Check Valve

Stock No. Description Port Size BSPP Max. Flow Rate Max. Working Pressure Min. Burst Pressure
FT257518 Adjustable Needle Valve c/w Reverse Flow Check 1/8” 10 LPM 400 BAR 1600 BAR
FT257514 Adjustable Needle Valve c/w Reverse Flow Check 1/4” 15 LPM 400 BAR 1600 BAR
FT257538 Adjustable Needle Valve c/w Reverse Flow Check 3/8” 30 LPM 400 BAR 1600 BAR
FT257512 Adjustable Needle Valve c/w Reverse Flow Check 1/2” 50 LPM 400 BAR 1600 BAR
FT257534 Adjustable Needle Valve c/w Reverse Flow Check 3/4” 80 LPM 400 BAR 1600 BAR
FT2575100 Adjustable Needle Valve c/w Reverse Flow Check 1” 150 LPM 320 BAR 1300 BAR
FT2575114 Adjustable Needle Valve c/w Reverse Flow Check 1-1/4” 200 LPM 320 BAR 1300 BAR



Data Sheet

Click here to view Technical Data
