Lever operated sectional hydraulic joystick

Single function hydraulic control valves, available in single section, or assembled up to 12 sections.

Type: Lever type
Nr. of Ports: From 2 to 24
Nominal Flow Rating l/min – (US gpm): 12 (3,2)
Max. Pressure bar – (psi): 60 (870)

MANUFACTURED BY

In Stock
Add to Product Enquiry

Description

Technical Specifications
Maximum input pressure 100 bar
Maximum back pressure on tank line 3 bar
Oil input capacity 16 l/min
Hysteresis 0.9 bar
Hydraulic fluid Mineral oil
Fluid temperature range -20+80°C
Fluid viscosity range 10÷300 Cst
Recommended filtration 25 μ Absolute
Recommended 8mm dia rigid,
operating pipes 1/4” BSP flexible
Body Cast iron
Plunger Stainless steel
Plunger guide Brass
Handles Microswitch Breaking
Direct current Load resistive 4.8A/30 VDC
Alternating current Load resistive 1.5A/250 VAC
Protection IP 40





RCM STYLE
Stock No. Model Code Description Metering Curve
RCM101A01 HCRCM101A01MAMWE95RAG02 Hydraulic Remote Control Single 6 – 20 bar
RCM101A02 HCRCM101A02MAMWE95RAG02 Hydraulic Remote Control Single 5 – 25 bar
RCM101A03 HCRCM101A03MAMWE95RAG02 Hydraulic Remote Control Single 2 – 13 bar
RCM101A04 HCRCM101A04MAMWE95RAG02 Hydraulic Remote Control Single 6 – 40 bar
RCM101A05 HCRCM101A05MAMWE95RAG02 Hydraulic Remote Control Single 0 – 64 bar
RCM101A06 HCRCM101A06MAMWE95RAG02 Hydraulic Remote Control Single 4 – 17 bar
RCM101A07 HCRCM101A07MAMWE95RAG02 Hydraulic Remote Control Single 5 – 15 bar
RCM101A08 HCRCM101A08MAMWE95RAG02 Hydraulic Remote Control Single 2 – 18 bar
RCM101A09 HCRCM101A09MAMWE95RAG02 Hydraulic Remote Control Single 5 – 20 bar
RCM101C01 HCRCM101C01MAMWE95RAG02 Hydraulic Remote Control Single 2 – 15 bar
RCM102*** HCRCM102***MAMWE95RAG02 Hydraulic Remote Control Single Detent Pos. 1 & 2
RCM103*** HCRCM103***MAMWE95RAG02 Hydraulic Remote Control Single Detent Pos. 1
RCM104*** HCRCM104***MAMWE95RAG02 Hydraulic Remote Control Single Detent Pos. 2
RCM105*** HCRCM105***MAMWE95RAG02 Hydraulic Remote Control Single Security Handle
RCM106*** HCRCM106***MAMWE95RAG02 Hydraulic Remote Control Single Friction Detent
RCM107*** HCRCM107***MAMWE95RAG02 Hydraulic Remote Control Single Security & Friction
RCM108*** HCRCM108***MAMWE95RAG02 Hydraulic Remote Control Single Security & Detent Pos. 1 & 2
RCM112*** HCRCM112***MAMWE95RAG02 Hydraulic Remote Control Single Security & Microswitch
*** Denotes Metering Curve e.g. A01 (6 – 20 Bar)





RCM Options and Accessories
Stock No. Model Code Description List Price
RCMMWE70 Type M Handle with Lens $28.00
RCMBWA70 Type B Handle with Microswitch to Close $169.00
RCMDWA70 Type D Handle with Dual Microswitch $169.00

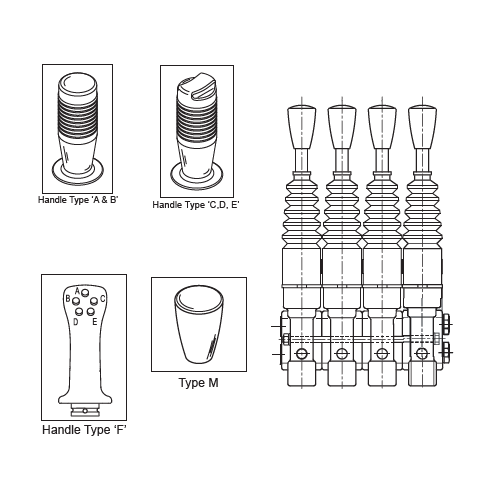

Note: Handle Type A, B, C, D, E, F available for HCRCM 1 only (Not suitable for Multi Section Assembly) s

Technical Data

Click here to view Technical Data

Parts Breakdown

Click here to view Technical Data
