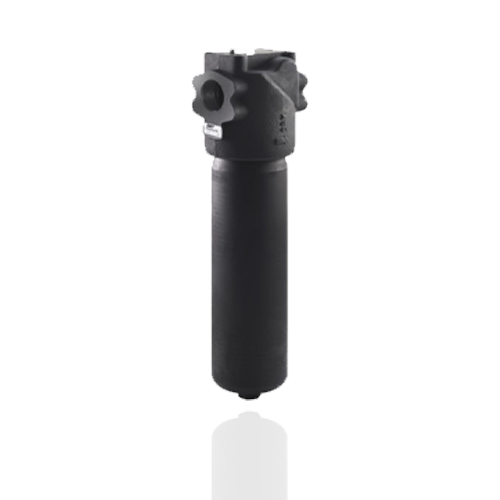

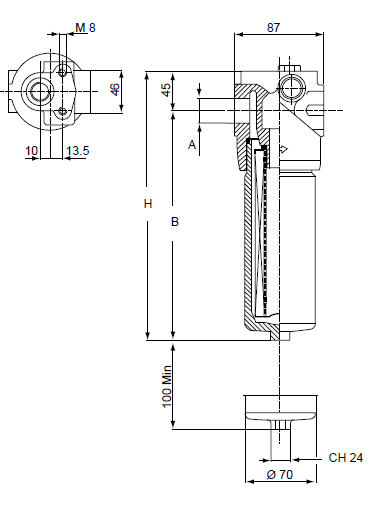

High Pressure In-Line Filter Housings ***No Element – Refer Table Below
| Stock No. | Description | Max. Flow Rate | Port Size | Bypass | Max. Pressure | |
| Setting | ||||||
| HPM281*NR | High Pressure Filter | 85 LPM | 1/2” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM281*NR1 | High Pressure Filter | 85 LPM | 3/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM282*NR | High Pressure Filter | 85 LPM | 1/2” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM282*NR1 | High Pressure Filter | 85 LPM | 3/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM283*NR | High Pressure Filter | 85 LPM | 1/2” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM283*NR1 | High Pressure Filter | 85 LPM | 3/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| Code | A | B | H |
| HPM281 | Refer Port Sizes Above | 144 | 189 |
| HPM282 | 169 | 214 | |
| HPM283 | 265 | 310 |
High Pressure Filter Elements
| Stock No. | Description | Micron Rating | Fits Filter Head | Δ p |
| CHP281FXN | High Pressure Filter Element | 3 Micron | HPM281**** | 20 BAR |
| CHP281GXN | 10 Micron | |||
| CHP281HXN | 25 Micron | |||
| CHP281NXN | 6 Micron | |||
| CHP281FYN | 3 Micron | 210 BAR | ||
| CHP281GYN | 10 Micron | |||
| CHP281HYN | 25 Micron | |||
| CHP281NYN | 6 Micron |
| CHP282FXN | High Pressure Filter Element | 3 Micron | HPM282**** | 20 BAR |
| CHP282GXN | 10 Micron | |||
| CHP282HXN | 25 Micron | |||
| CHP282NXN | 6 Micron | |||
| CHP282FYN | 3 Micron | 210 BAR | ||
| CHP282GYN | 10 Micron | |||
| CHP282HYN | 25 Micron | |||
| CHP282NYN | 6 Micron |
| CHP283FXN | High Pressure Filter Element | 3 Micron | HPM283**** | 20 BAR |
| CHP283GXN | 10 Micron | |||
| CHP283HXN | 25 Micron | |||
| CHP283NXN | 6 Micron | |||
| CHP283FYN | 3 Micron | 210 BAR | ||
| CHP283GYN | 10 Micron | |||
| CHP283HYN | 25 Micron | |||
| CHP283NYN | 6 Micron |

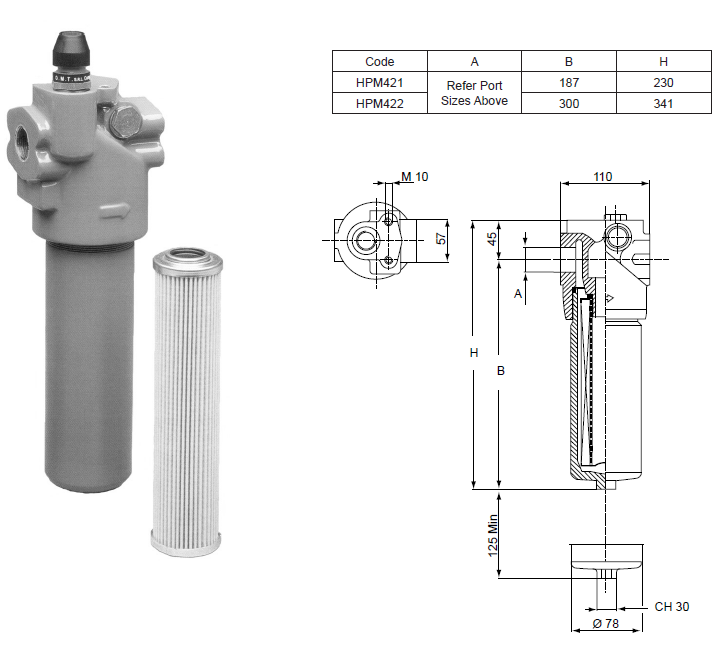

High Pressure In-Line Filter Housings ***No Element – Refer Table Next Page
| Stock No. | Description | Max. Flow Rate | Port Size | Bypass | Max. Pressure | |
| Setting | ||||||
| HPM421*NR | High Pressure Filter | 140 LPM | 3/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM421*NR1 | High Pressure Filter | 140 LPM | 1” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM422*NR | High Pressure Filter | 140 LPM | 3/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM422*NR1 | High Pressure Filter | 140 LPM | 1” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM422*NR12 | High Pressure Filter | 140 LPM | 1-1/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
High Pressure Filter Elements
| Stock No. | Description | Micron Rating | Fits Filter Head | Δ p | ||
| CHP421FXN | High Pressure Filter Element | 3 Micron | HPM421**** | 20 BAR | ||
| CHP421GXN | 10 Micron | |||||
| CHP421HXN | 25 Micron | |||||
| CHP421NXN | 6 Micron | |||||
| CHP421FYN | 3 Micron | 210 BAR | ||||
| CHP421GYN | 10 Micron | |||||
| CHP421HYN | 25 Micron | |||||
| CHP421NYN | 6 Micron | |||||
| CHP422FXN | High Pressure Filter Element | 3 Micron | HPM422**** | 20 BAR | ||
| CHP422GXN | 10 Micron | |||||
| CHP422HXN | 25 Micron | |||||
| CHP422NXN | 6 Micron | |||||
| CHP422FYN | 3 Micron | 210 BAR | ||||
| CHP422GYN | 10 Micron | |||||
| CHP422HYN | 25 Micron | |||||
| CHP422NYN | 6 Micron | |||||
High Pressure In-Line Filter Housings ***No Element – Refer Next Table
| Stock No. | Description | Max. Flow Rate | Port Size | Bypass | Max. Pressure | |
| Setting | ||||||
| HPM621*NR | High Pressure Filter | 420 LPM | 1” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM621*NR1 | High Pressure Filter | 420 LPM | 1-1/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM622*NR1 | High Pressure Filter | 420 LPM | 1-1/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM622*NR2 | High Pressure Filter | 420 LPM | 1-1/2” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM623*NR2 | High Pressure Filter | 420 LPM | 1-1/2” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| HPM624*NR12 | High Pressure Filter | 420 LPM | 1-1/4” BSPP | 6 BAR | 420 BAR | 6000 PSI |
| Code | A | H |
| HPM621 | Refer Port Sizes Above | 273 |
| HPM622 | 393 | |
| HPM623 | 533 | |
| HPM624 | 673 |
High Pressure Filter Elements
| Stock No. | Description | Micron Rating | Fits Filter Head | Δ p | ||
| CHP621GXN | High Pressure Filter Element | 10 Micron | HPM621**** | 20 BAR | ||
| CHP621HXN | 25 Micron | |||||
| CHP621NXN | 6 Micron | |||||
| CHP621FYN | 3 Micron | 210 BAR | ||||
| CHP621GYN | 10 Micron | |||||
| CHP621HYN | 25 Micron | |||||
| CHP621NYN | 6 Micron | |||||
| CHP622FXN | High Pressure Filter Element | 3 Micron | HPM622**** | 20 BAR | ||
| CHP622GXN | 10 Micron | |||||
| CHP622HXN | 25 Micron | |||||
| CHP622NXN | 6 Micron | |||||
| CHP622FYN | 3 Micron | 210 BAR | ||||
| CHP622GYN | 10 Micron | |||||
| CHP622HYN | 25 Micron | |||||
| CHP622NYN | 6 Micron | |||||
| CHP623FXN | High Pressure Filter Element | 3 Micron | HPM623**** | 20 BAR | ||
| CHP623GXN | 10 Micron | |||||
| CHP623HXN | 25 Micron | |||||
| CHP623NXN | 6 Micron | |||||
| CHP623FYN | 3 Micron | 210 BAR | ||||
| CHP623GYN | 10 Micron | |||||
| CHP623HYN | 25 Micron | |||||
| CHP623NYN | 6 Micron | |||||
| CHP624FXN | High Pressure Filter Element | 3 Micron | HPM624**** | 20 BAR | ||
| CHP624GXN | 10 Micron | |||||
| CHP624HXN | 25 Micron | |||||
| CHP624NXN | 6 Micron | |||||
| CHP624FYN | 3 Micron | 210 BAR | ||||
| CHP624GYN | 10 Micron | |||||
| CHP624HYN | 25 Micron | |||||
| CHP624NYN | 6 Micron | |||||
